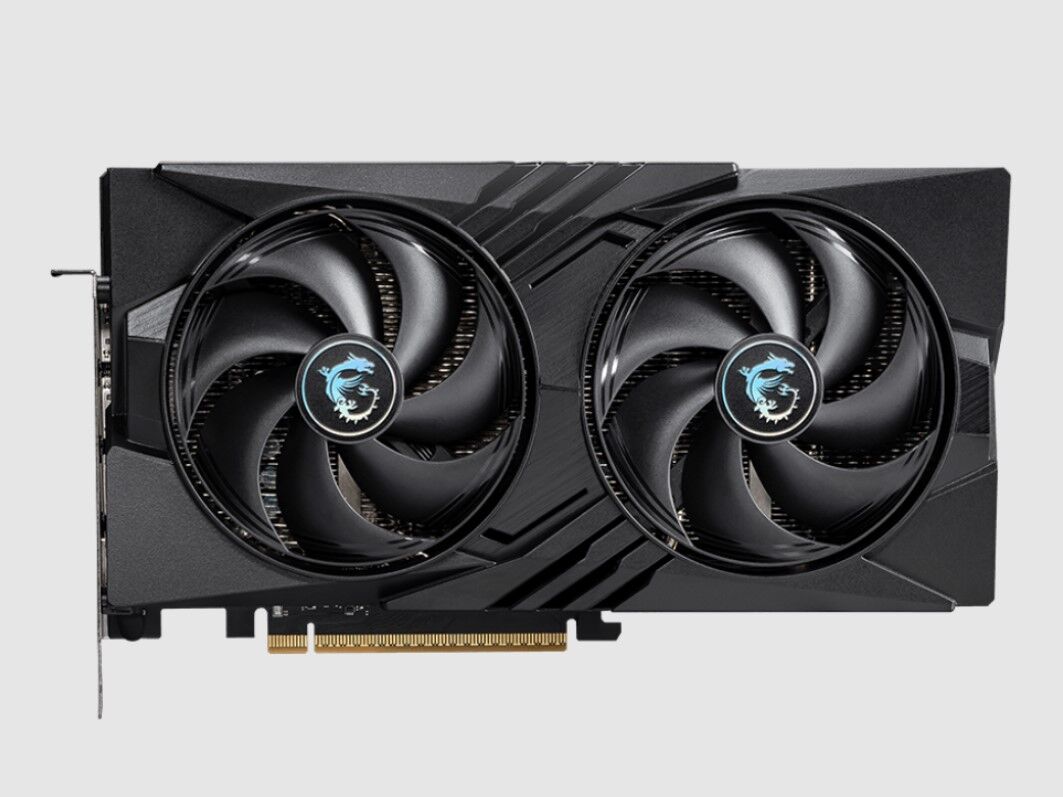

MSI nVidia GeForce RTX 5060 8G GAMING OC, PCI Express Gen 5 x16, Boost: 2625 MHz, CUDA 3840 Units, 8GB GDDR7, . HDMI„ x 1

SPECIFICATIONS

Marketing Name GeForce RTX„ 5060 8G GAMING OC

Model Name G5060-8GC

Graphics Processing Unit NVIDIA GeForce RTX„ 5060

Interface PCI Express Gen 5 x16 (uses x8)

Core Clocks Extreme Performance: 2640 MHz (MSI Center)

Boost: 2625 MHz

CUDA CORES 3840 Units

Memory Speed 28 Gbps

Memory 8 GB GDDR7

Memory Bus 128-bit

Output DisplayPort x 3 (v2.1b)

HDMI„ x 1 (As specified in HDMI„ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

HDCP Support Y

Power consumption 155W

Power connectors 8-pin x 1

Recommended PSU 550W

Card Dimension (mm) 248 x 135 x 41 mm

Weight (Card Package) 649 g 966 g

DirectX Version Support 12 Ultimate

OpenGL Version Support 4.6

Maximum Displays 4

G-SYNC technology Y

Digital Maximum Resolution 7680 x 4320

FEATURES

Twin Frozr 10

Experience superior cooling and quieter performance with MSI fts

enhanced fan blade design.

STORMFORCE FAN

Seven fan blades, claw texturing, and a circular arc are designed

for optimal airflow with minimal noise.

Nickel-plated Copper Baseplate

Heat from the GPU and memory is swiftly captured by a nickelplated copper baseplate and transferred.

Core Pipes

Core Pipes feature a square design to maximize contact with the

GPU baseplate for optimal thermal management.

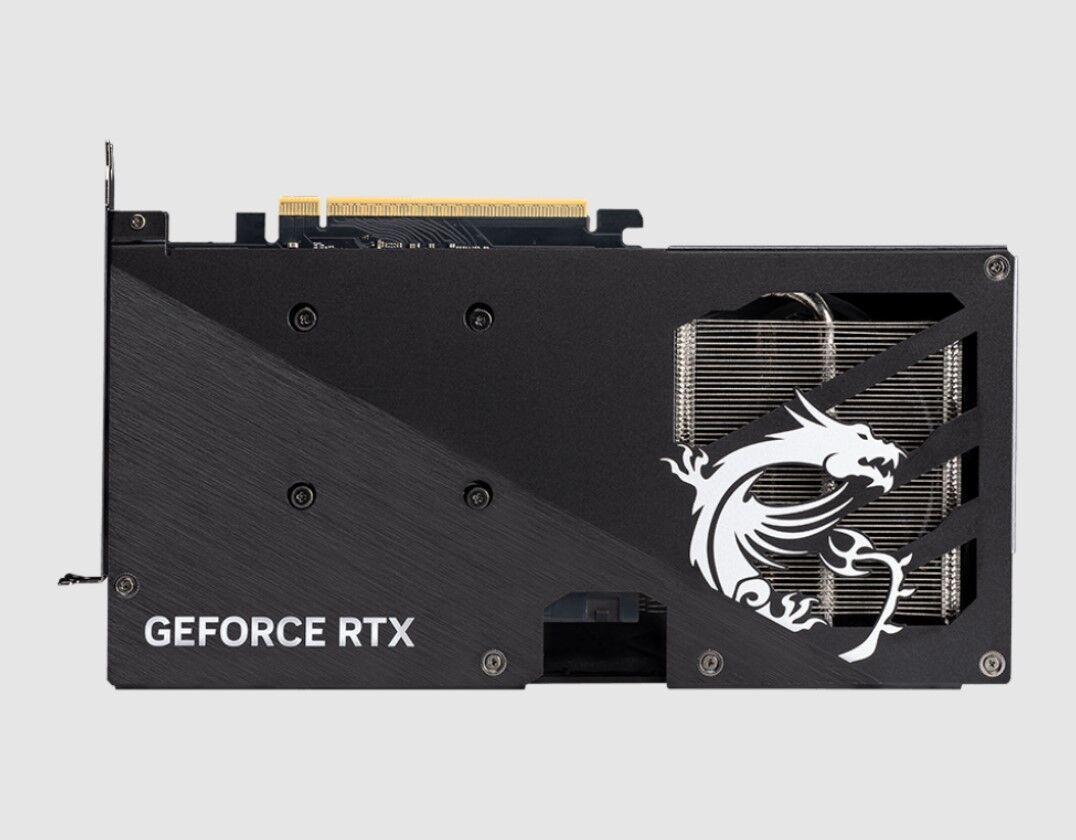

Metal Backplate

A reinforcing metal backplate with airflow vents and thermal pads

enhances cooling.

Wave Curved 3.0

Additional efficiency is gained by adjusting the size of the wave

edges under the fan motor and other spots where there is less

airflow.

Afterburner

Take full control with the most recognized and widely used

graphics card overclocking software in the world.

MSI Center

The exclusive MSI Center software lets you monitor, tweak and

optimize MSI products in real-time.
