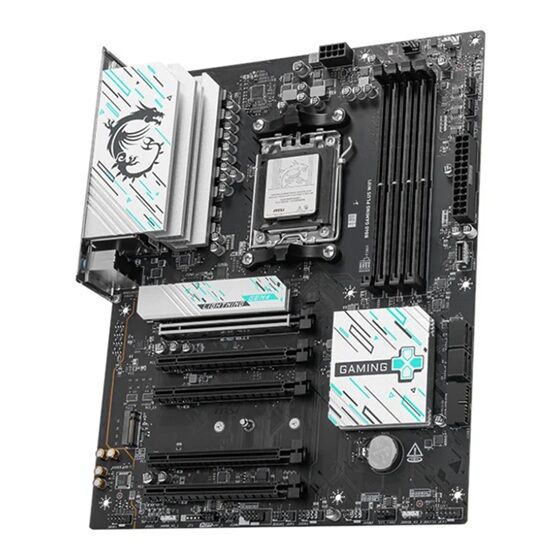

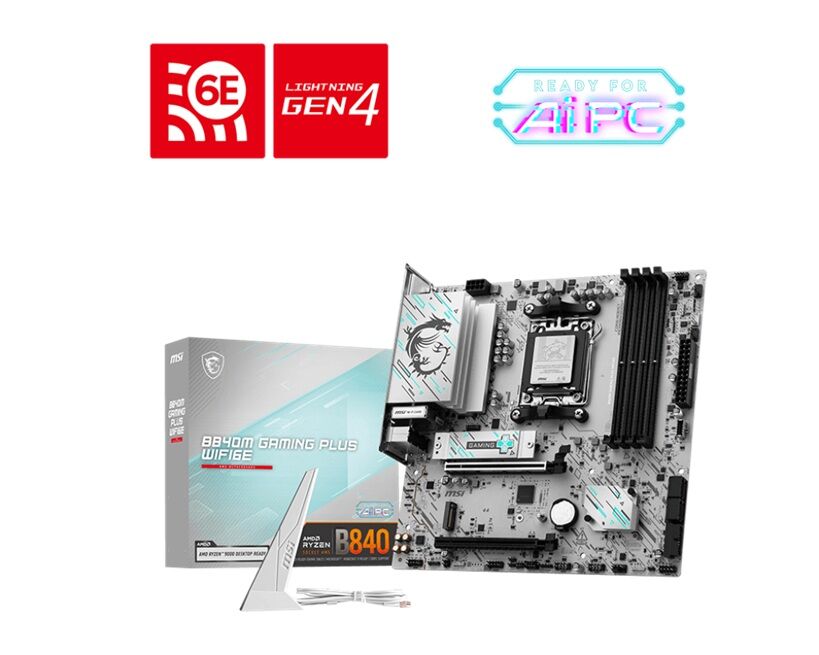

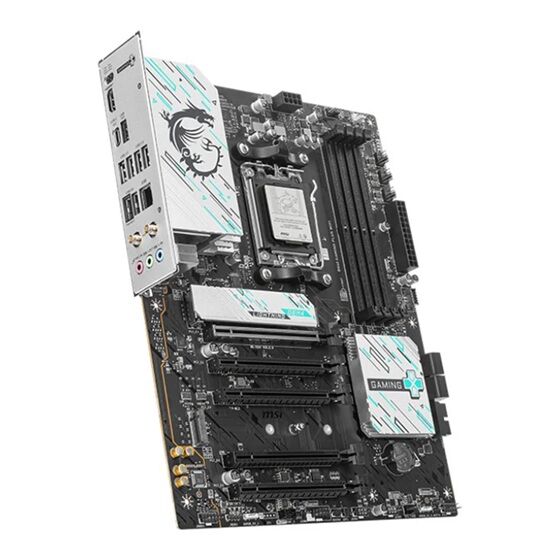

MSI B840M GAMING PLUS WIFI6E, AM5 ATX Motherboard, 4x DDR5 256GB, 1x HDMI, 2x PCI-E x16 slot, 2x M.2, 4x SATA 6G, Wi-Fi 6E, Bluetooth 5.3

Chipset

AMD B840

CPU

Supports AMD Ryzen„ 9000 8000 7000 Series Desktop Processors

Socket AM5

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support DDR5 8000 - 5600 (OC) MT s 5600 - 4800 (JEDEC) MT s

Ryzen„ 9000 Series Processors max. overclocking frequency:

1DPC 1R Max speed up to 8000 MT s

1DPC 2R Max speed up to 6400 MT s

2DPC 1R Max speed up to 6400 MT s

2DPC 2R Max speed up to 5600 MT s

Onboard Graphics

1x HDMI„

Support HDMI„ 2.1, maximum resolution of 4K 60Hz

Slot

2x PCI-E x16 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)

PCI_E1 slot

Supports PCIe 4.0 x16 (For Ryzen„ 9000 7000 Series processors)

Supports PCIe 4.0 x8 (For Ryzen„ 8700 8600 8400 Series processors)

Supports PCIe 4.0 x4 (For Ryzen„ 8500 8300 Series processor)

Audio

Realtek ALC897 Codec

7.1-Channel High Definition Audio

Storage

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 2260 devices

M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 2260 devices

4x SATA 6G

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

LAN

Realtek 8125D 2.5G LAN

WIRELESS LAN BLUETOOTH

Wi-Fi 6E Solution

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX RX, 2.4GHz 5GHz 6GHz (160MHz) up to 2.4Gbps

Supports 802.11 a b g n ac ax

Supports Bluetooth 5.3, FIPS, FISMA

Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11.

Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

LED FEATURE

4x EZ Debug LED

1x EZ Memory Detection LED

OPERATING SYSTEM

Support for Windows 11 64-bit
