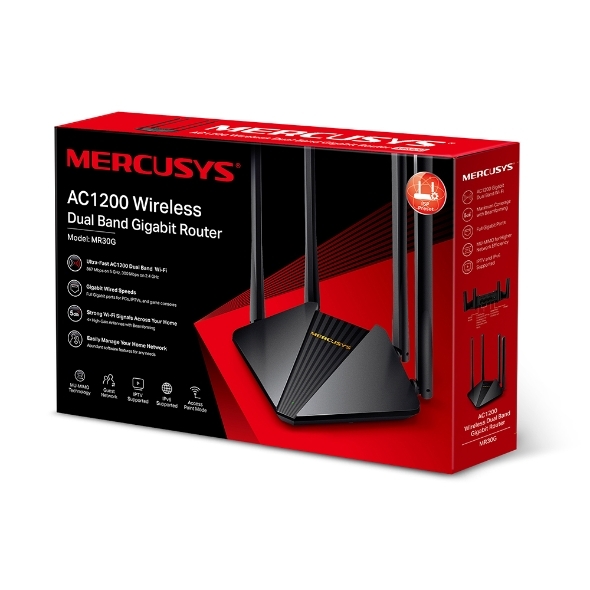

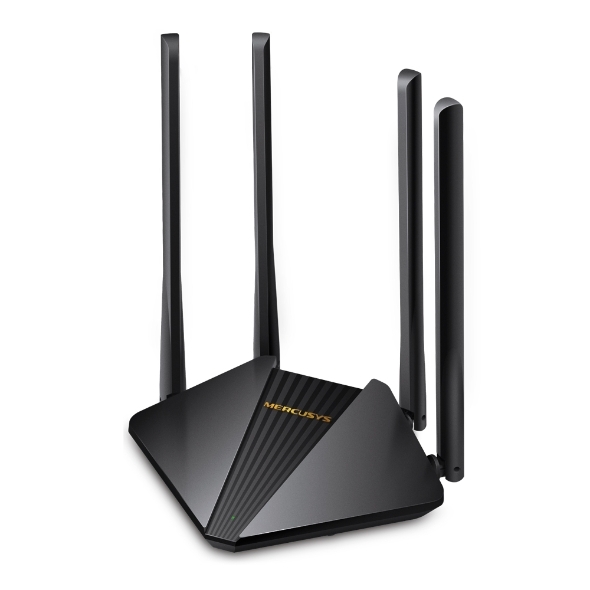

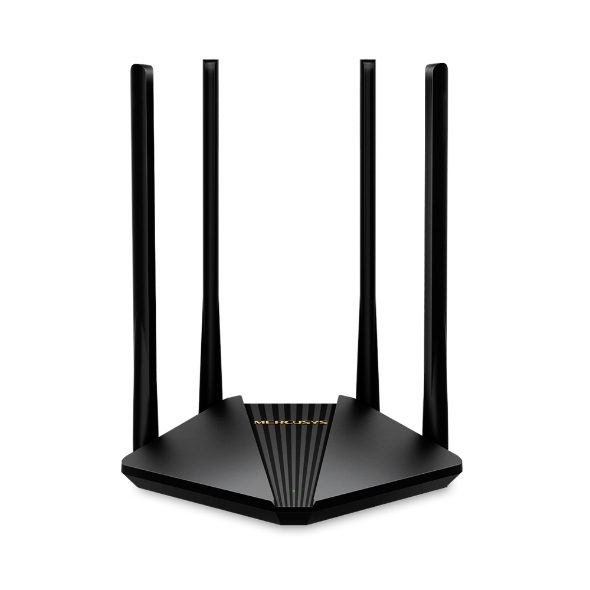

Mercusys MR30G AC1200 Wireless Dual Band Gigabit Router

AC1200 Gigabit WiFi “ Enjoy home entertainment without any lag, reaching speeds up to 1.2 Gbps (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)

Broader Coverage “ 4× high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner

Full Gigabit Ports “ Make full use of your internet access and transfer data at dizzying speeds for peak performance

Higher Network Efficiency “ MU-MIMO technology allows MR30G to communicate with multiple devices at the same time, increasing WiFi throughput for each device

Easily Manage Your Home Network “ Varied software functions such as Parental Controls, QoS, and Guest Network for safety and effectiveness

IPTV Supported “ Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming

IPv6 Supported “ Allows you to both enjoy the IPv6 services provided by your ISP and visit IPv6 websites

WirelessWireless Standards

IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency

2.4 GHz, 5 GHz

Signal Rate

867 Mbps (5 GHz) + 300 Mbps (2.4 GHz), compatible

with 11ac/a/b/g/n Wi-Fi standards

Reception Sensitivity

11g 6Mbps: -96dBm

11g 54Mbps: -78dBm

11n HT40 MCS7: -74dBm

11n HT20 MCS7: -71dBm

11a 6Mbps: -97dBm

11a 54Mbps: -79dBm

11ac VHT20 MCS8: -74dBm

11ac VHT40 MCS9: -70dBm

11ac VHT80 MCS9: -65dBm

Transmission Power

2.4 GHz < 20dBm (EIRP)

5 GHz < 23dBm (EIRP)

Wireless Security

WPA-PSK / WPA2-PSK

SoftwareOperation Modes

Router Mode, Access Point Mode

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Access Control

Local Management

Remote Management

DHCP

Server, DHCP Client List

NAT Forwarding

Port Forwarding, Port Triggering, UPnP, DMZ

Firewall Security

SPI Firewall, IP and MAC Address Binding

Guest Network

2.4 GHz Guest Network, 5 GHz Guest Network

HardwareDimensions (W X D X H)

6.3 ×
