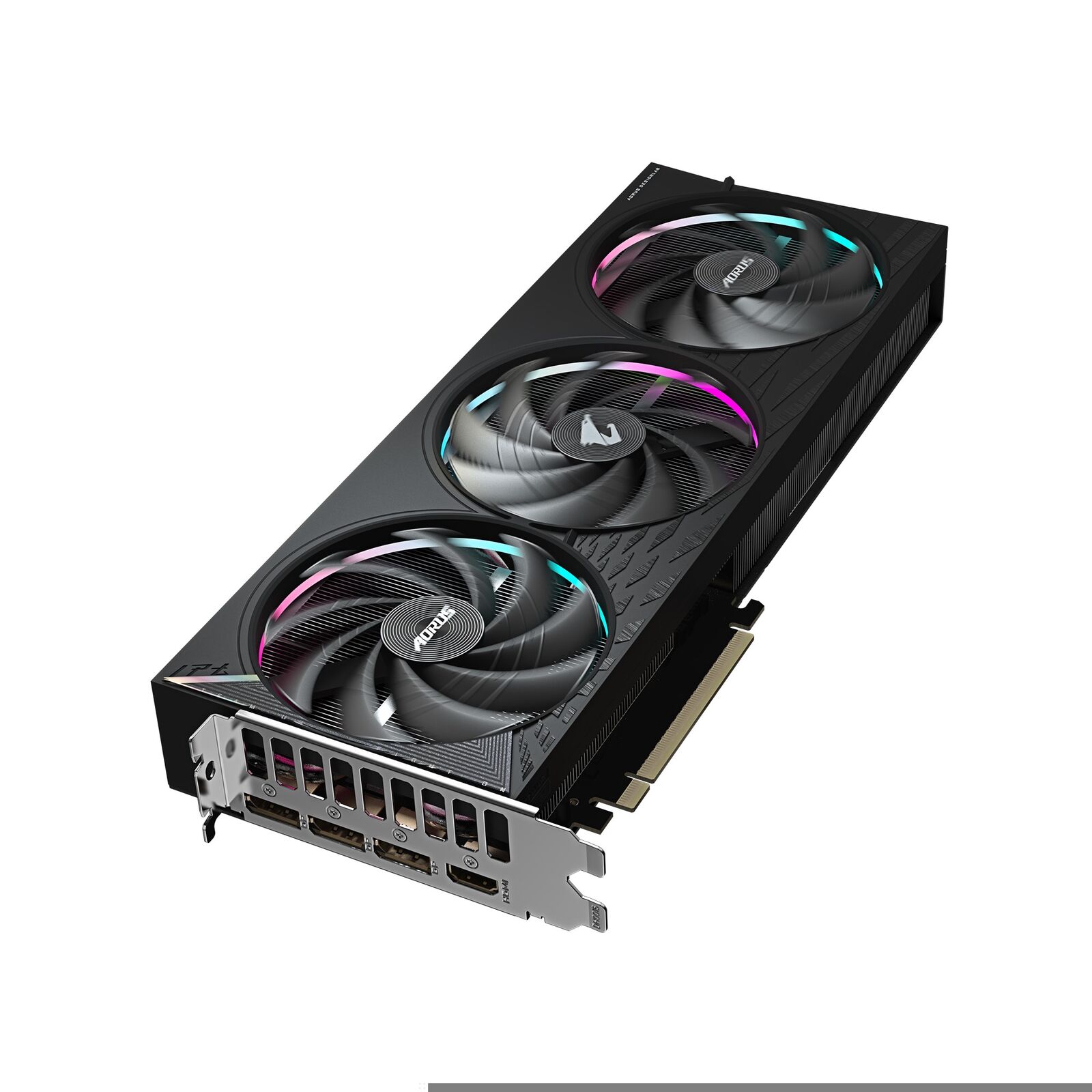

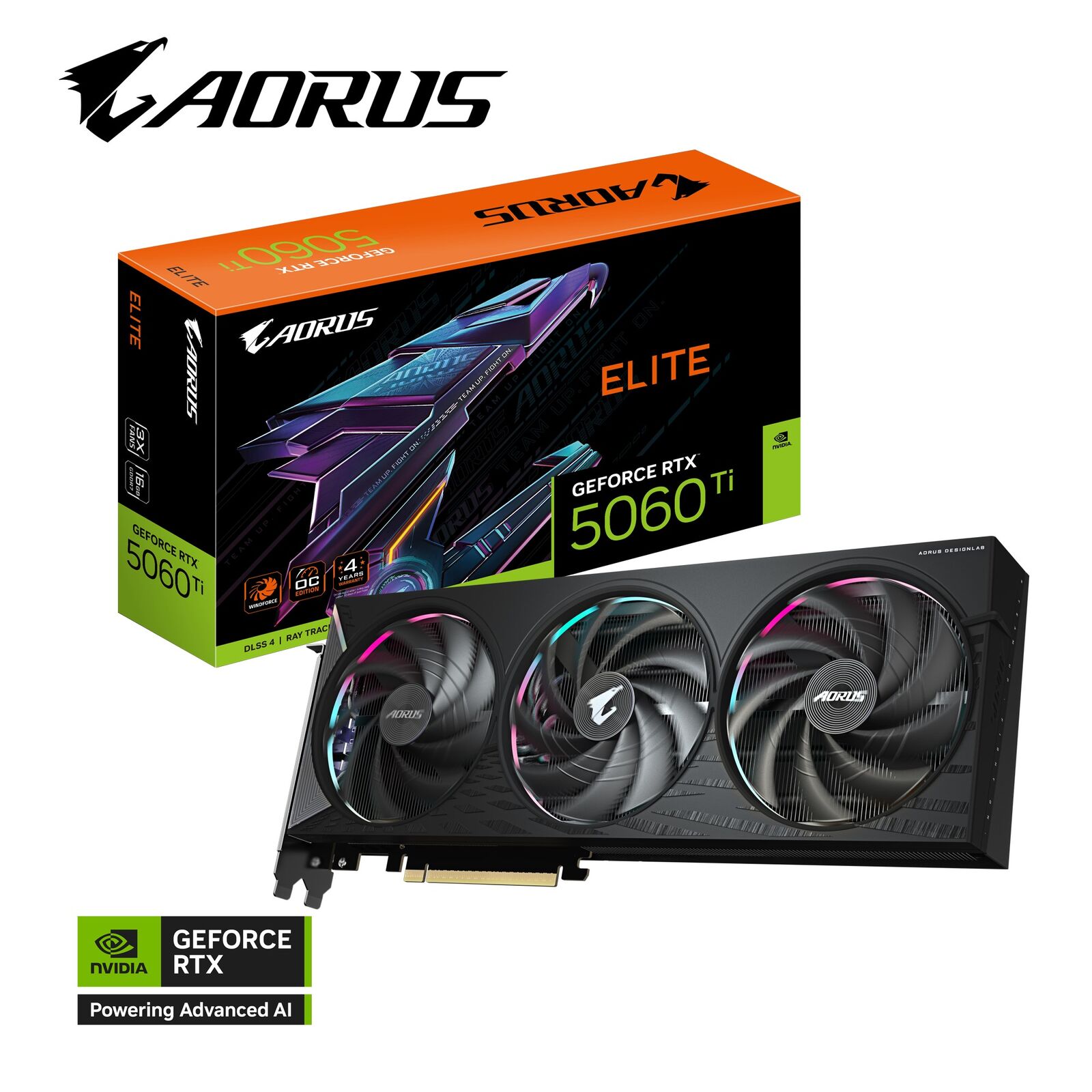

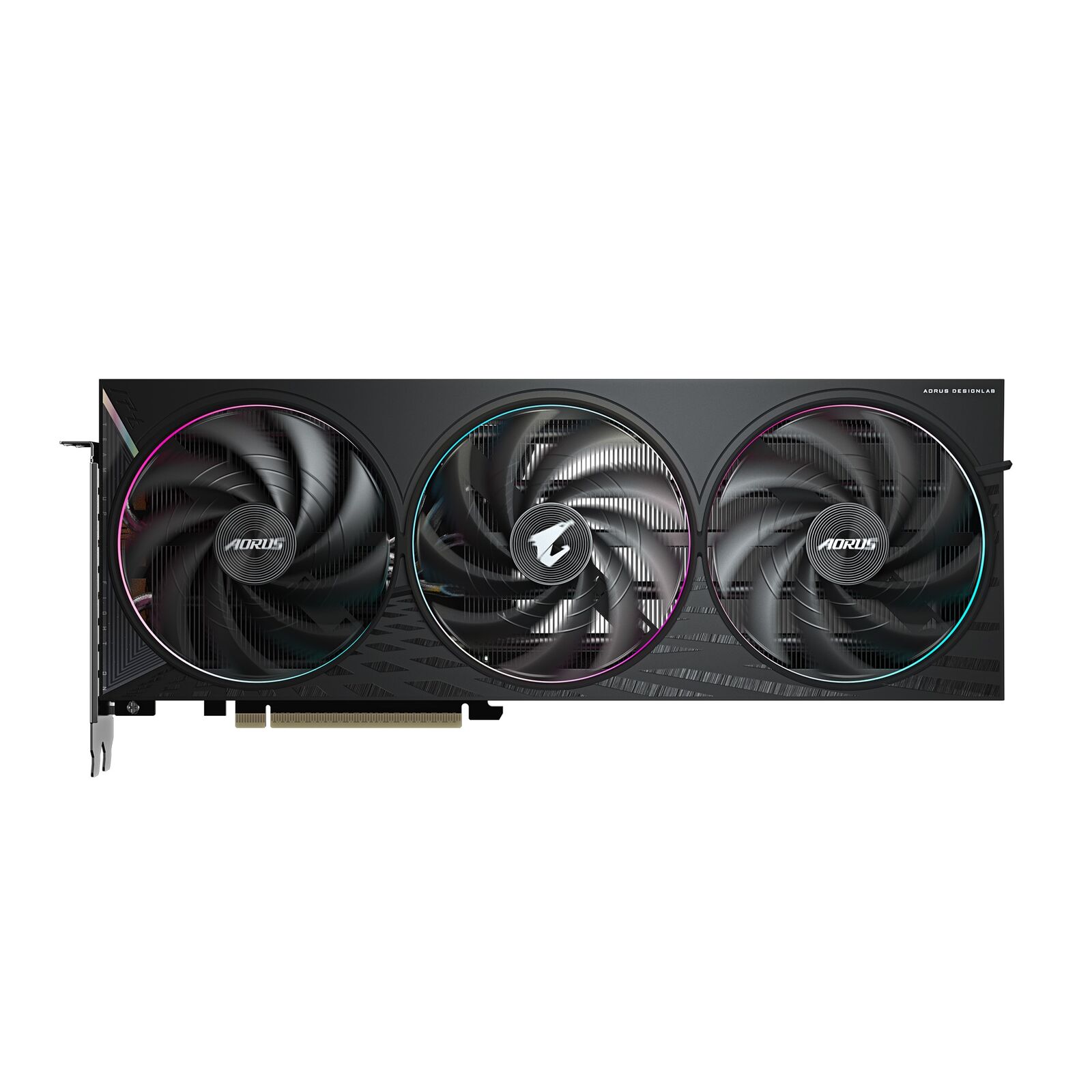

Gigabyte AORUS GeForce RTX„ 5060 Ti ELITE 16G, 2722 MHz, CUDA TBD, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 650W, DisplayPort 2.1b 3 HDMI 2.1b 1

SPECIFICATION

Graphics Processing

GeForce RTX„ 5060 Ti

Core Clock

2722 MHz (Reference card :2572 MHz)

CUDA Cores

TBD

Memory Clock

28 Gbps

Memory Size

16 GB

Memory Type

GDDR7

Memory Bus

128 bit

Card Bus

PCI-E 5.0

Digital max resolution

7680x4320

Multi-view

4

Card size

L=329 W=128 H=41 mm

PCB Form

ATX

DirectX

DirectX 12 API

OpenGL

4.6

Recommended PSU

650W

Power Connectors

8 Pin1

Output

DisplayPort 2.1b 3

HDMI 2.1b 1

Accessories

1. Quick guide

2. Warranty registration

3. AORUS metal sticker

FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4

Powered by GeForce RTX„ 5060 Ti

Integrated with 16GB GDDR7 128bit memory interface

WINDFORCE cooling system

Hawk fan

Server-grade Thermal conductive gel

RGB Halo

Dual BIOS (Performance Silent)

Reinforced structure

4 years warranty (Online registration required)

The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores

Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors

Optimized for neural shaders

Fourth-Gen Ray Tracing Cores

Built for Mega Geometry

WINDFORCE

COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.

UNCOMPROMISING CRAFTSMANSHIP PERFORMANCE

Shuttling through the AORUS universe, the iconic light slices through the visual field, while extreme speed leaves afterimages that culminate in a truly one-of-a-kind symbol.

SPEED WITH AFTERIMAGE EFFECT

The design focuses on extensive afterimage effects to convey an intense sense of extreme speed on the front cover, with the visuals converging into the fans. Paired with a matte surface texture, the overall appearance is imbued with a mysterious yet dynamic aura.

OVERLAY DESIGN

The AORUS logo on the side utilizes an overlay design to create a gradient effect, enriching the visual layers while also presenting a dynamic and vibrant aesthetic.

RGB HALO

The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

REINFORCED STRUCTURE

The reinforced metal backplate with a bent edge, securely fastened to the I O bracket, provides exceptional structural integrity.
