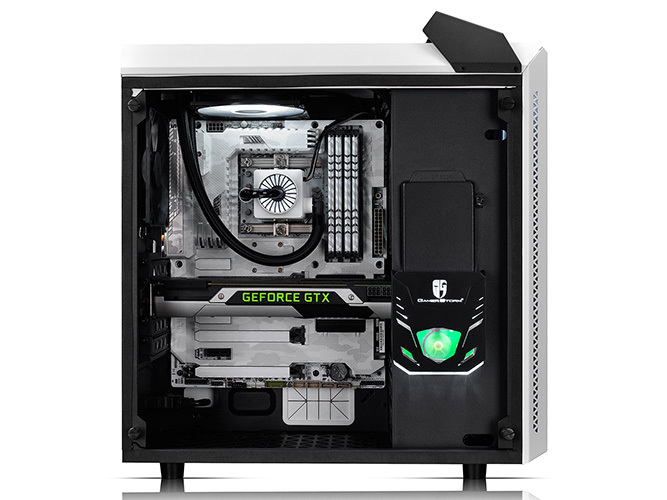

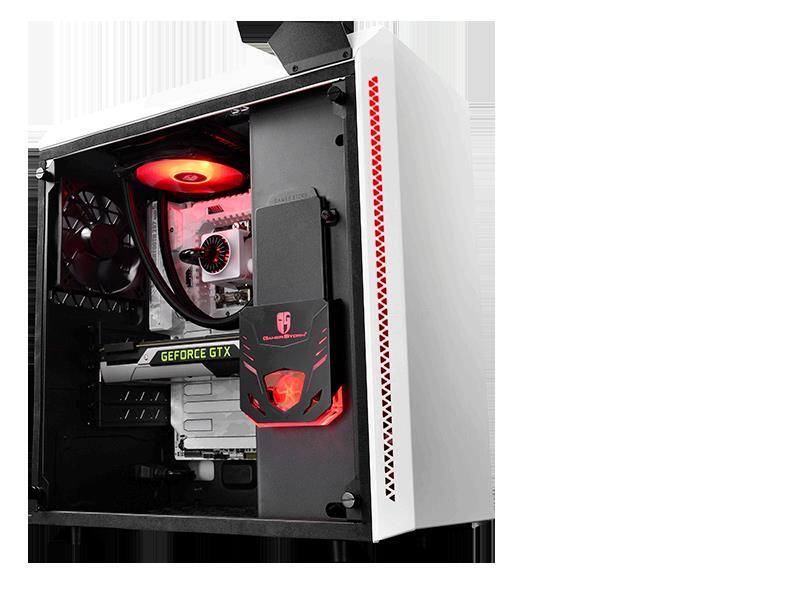

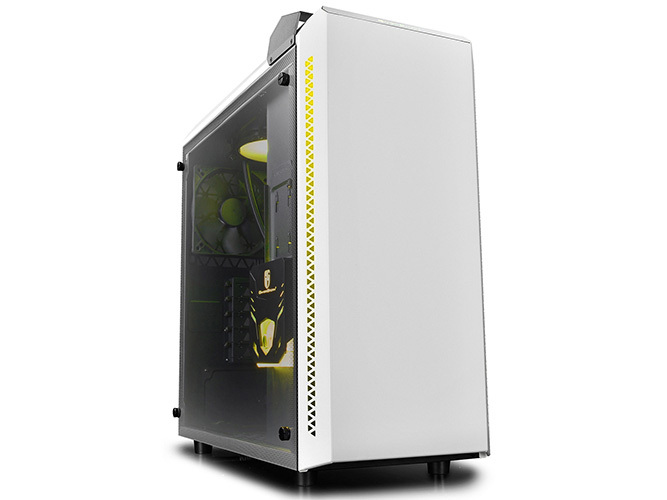

BARONKASE LIQUID is a MATX size all-metal case that features a pre-installed Integrated Liquid Cooling System with a 120mm Radiator. It supports a full sized ATX mainboard, which is achieved by allowing the PSU to be mounted at the top of the case towards the front and bringing power to the PSU with an extension cable provided. Full length graphics cards can also be fitted by removing a name plate on the back panel.

MATX Size Supports ATX MB

Tempered Glass Side-panel

Pre-installed Integrated Liquid Cooling System with 120mm Radiator

Combined RGB Lighting System with Manual Controller

All-metal Front Panel

Intel Socket 150W

LGA20XX/LGA1366/LGA115X

AMD Socket 140W

AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1

Technical Spec

Materials SPCC(thickness: side panel:0.7mm, Glass: 4mm, Front panel:1.2mm)

Product Dimension (LxWxH) 423×215×470mm

Weight Net Weight:10 kg; Gross Weight:11 kg

I/O Panel 2×USB3.0 /Audio(HD)×1/Mic×1/Manual Controller for RGB

Motherboards ATX/MATX/MINI-ITX

Drive Bays 5.25'Drive Bays×0; 3.5œ/2.5'Drive Bays×2; 2.5œDrive Bays×3

Expansion Slots 5

Cooling Fans Pre-installed: Rear: 1×120mm fan; Top: 1×120mm RGB fan Optional: Front: 2×120 or 1×140; Top: 2×120/ 2×140mm Bottom: 2×120mm in case of PSU installed at top

CPU Cooler Compatibility 168mm height limit /Liquid Cooler: 120mm radiator liquid cooling system pre-installed at top; Optional: 120mm radiator at rear; 120/240/140/280mm radiator at top

Power Supply Support ATX PS2 (maximum length: 200mm at bottom, 160mm at top)

Graphic Card Clearance Maximum 340mm length

Carton Dimension 497×282×506mm

Water Block Dimensions 92.5×93×85mm(L×W×H)

Radiator Dimensions 154×120×27mm(L×W×H)(aluminum material)

Fan Dimensions 120×120×25mm RGB Fan

Fan Speed 500±150-1800±10%RPM (4Pin)

Fan Air Flow 69.34 CFM (MAX)

Fan Noise Level 17.8~30dB(A)

Fan Power Consumption 3.84W

Pump Connector 3Pin

Pump Speed 2300±10%RPM

Pump Current 0.2A(MAX)

Pump 2.4W
