Description

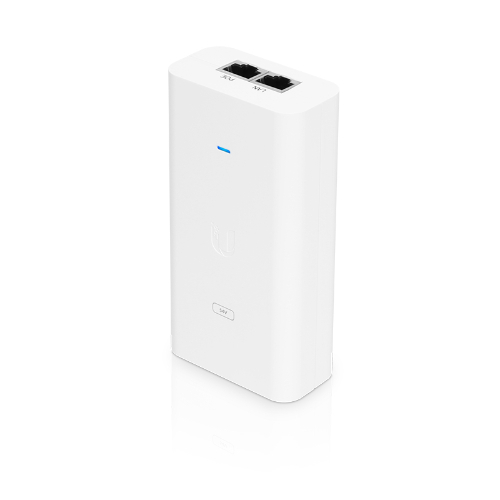

Ubiquiti's EdgePoint POE-54V-80W PoE Injector is designed to power Ubiquiti's EP-R8 and EP-S16 EdgePoint models. Australian (AU) Power cable included

Dimensions 123 x 65 x 34 mm

Weight 299 g

Output Voltage 54VDC @ 1.5A

LAN Activity Indicator No

Gigabit LAN Port Yes

Remote Reset Capability No

Reset Button 100-240AC @ 50/60Hz

Input Voltage 100-240AC @ 50/60Hz

Input Current 0.8A @ 120VAC

0.4A @ 240VAC

Inrush Current <80A Peak @ 120VAC,

<120A Peak @ 230VAC

Efficiency 87+%

Output Ripple 1% Max

Switching Frequency 100 kHz Max.

Line Regulation ± 1%

Load Regulation ± 3%

4-Pair Powering Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)

Operating Temperature 0 to 40° C (32 to 104° F)

Storage Temperature -30 to 70° C (-22 to 158° F)

Operating Humidity 35 to 95% Noncondensing

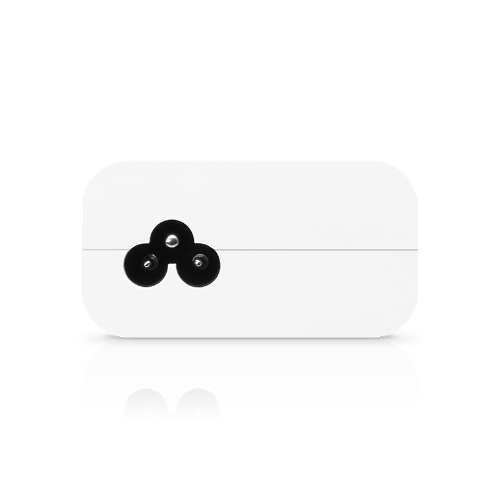

AC Connector IEC-320 C6

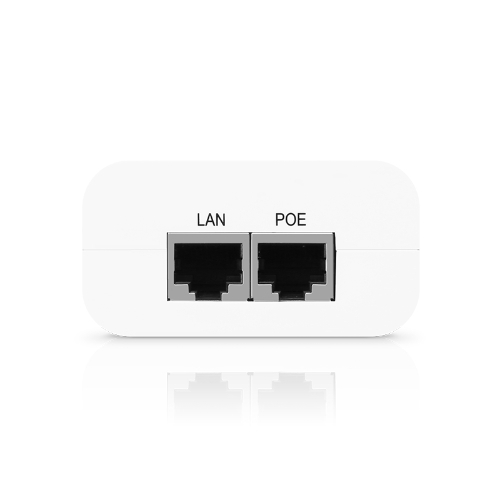

Data IN / POE RJ45 Shielded Socket

Surge Protection Difference and Common Mode

Clamping Protection 11V Data, 60V Power

Max. Surge Discharge 1500A (8/20 µs) Power

Peak Pulse Current 36A (10/1000 µs) Data

Shunt Capacitance <5 pF data

Response Time <1 ns

Compliance IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B AC Cable with Earth Ground RCM

Specifications
SKU NHU-POE-54V-80W
Barcode # 817882026642
Brand Ubiquiti
Shipping weight 0.9800kg
Shipping width 0.320m
Shipping height 0.144m
Shipping length 0.214m
Assembled length 1.140m
Assembled height 0.440m
Assembled width 2.200m

Ubiquiti POE-54-80W Injector 54V 80W for EdgePoint POE-54V-80W Surge and Clamping Protection

$60.32
RRP $66.53 save 9%

or 4 payments of $15.08 with Learn more

In Stock

Product Information

SKU:

NHU-POE-54V-80W

Brand:

Ubiquiti

Barcode #:

817882026642

Shipping Weigth:

0.9800kg

Warranty:

12
