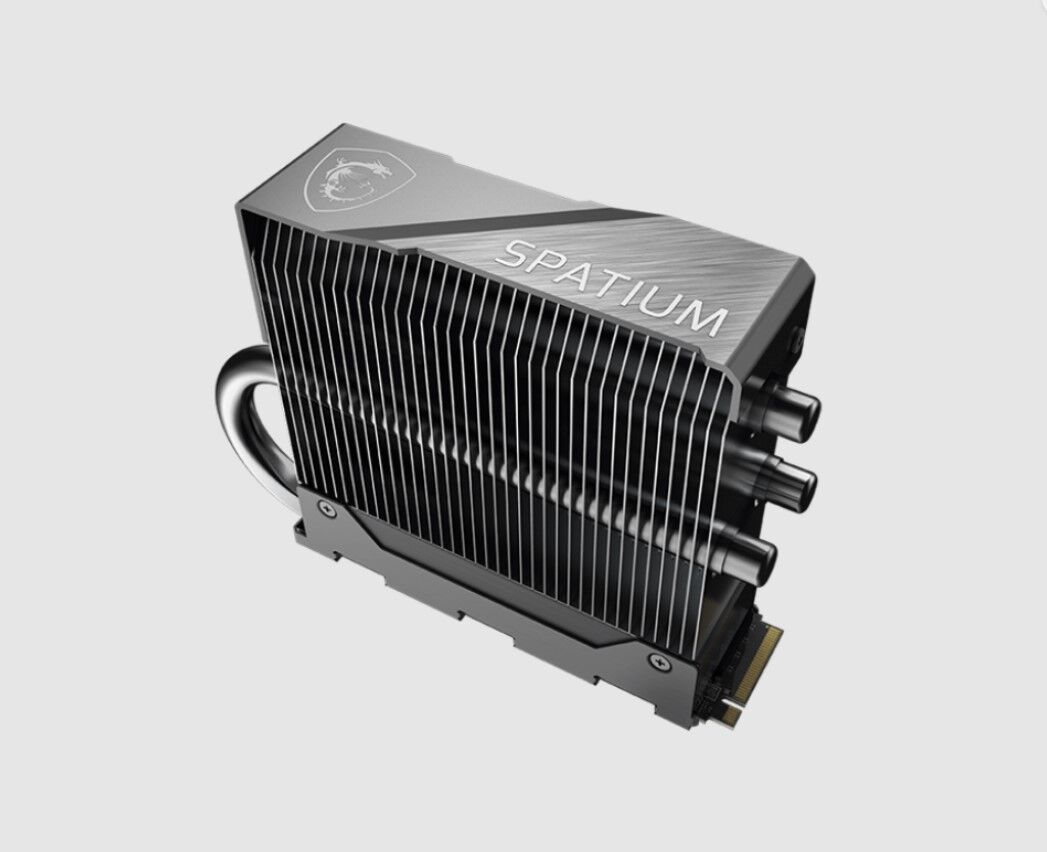

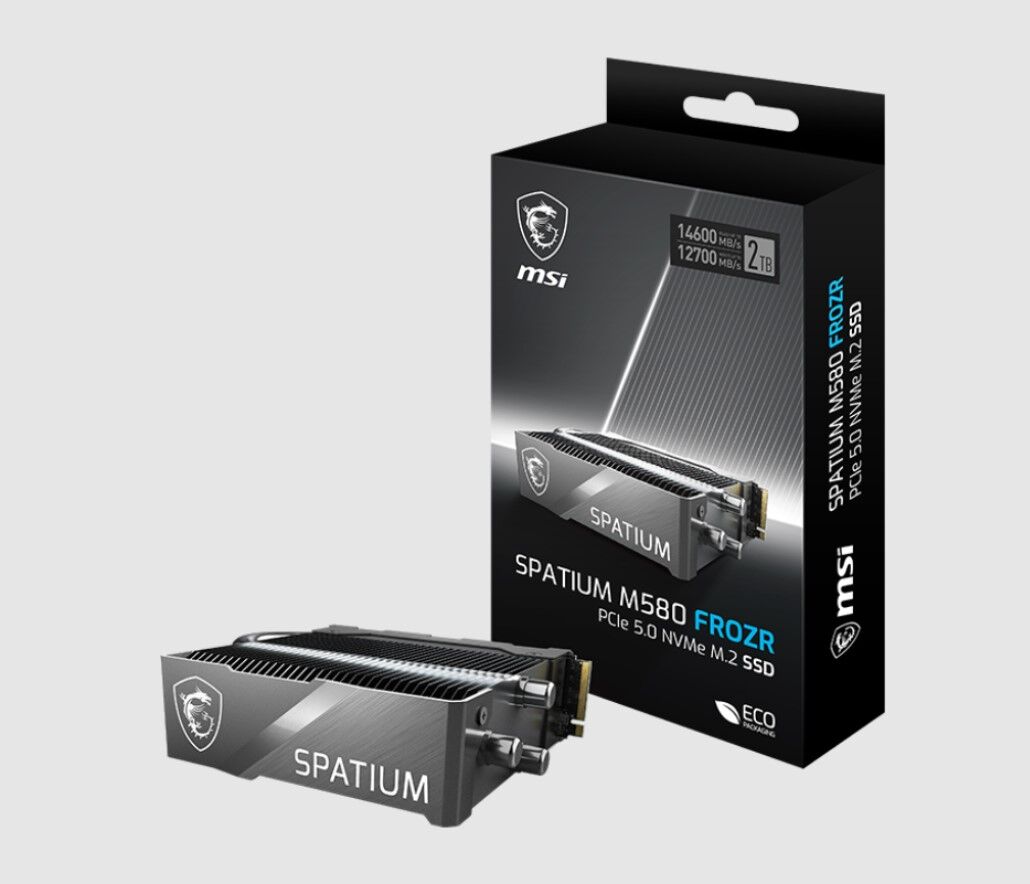

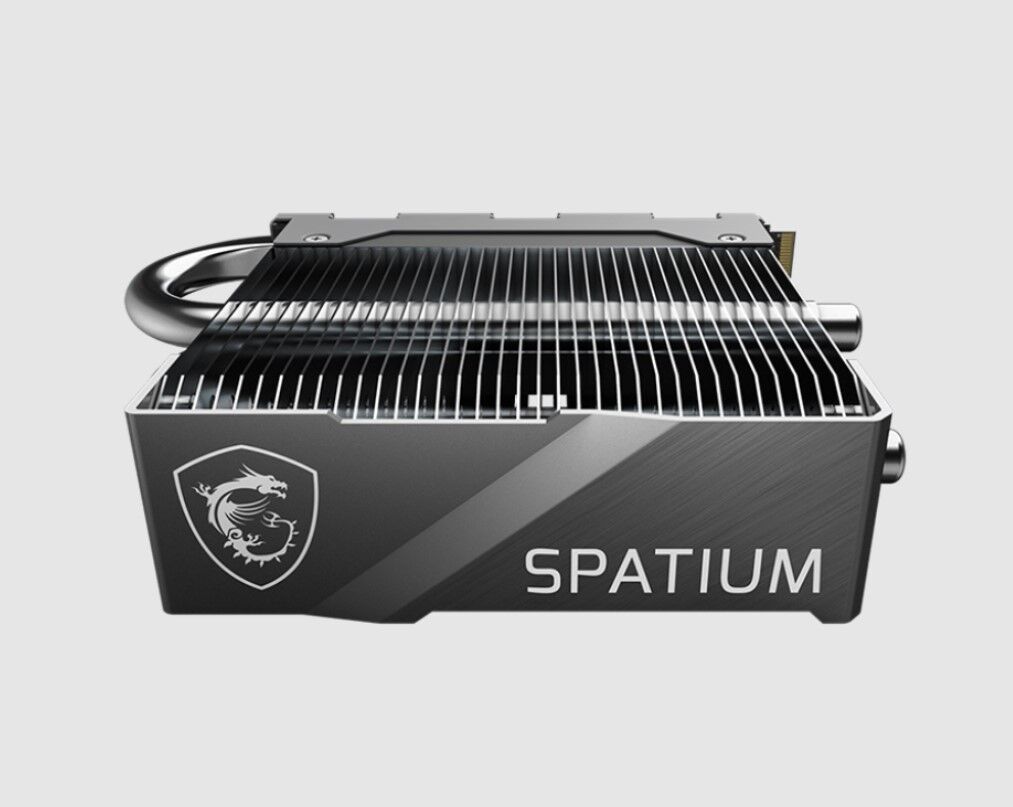

MSI SPATIUM M580 PCIe 5.0 NVMe M.2 FROZR 2TB, PCIe Gen5x4, SEQUENTIAL READ up to 14,600 MB S, SEQUENTIAL WRITE 12,700 MB S, 5Y warranty

CAPACITY 2TB

CONTROLLER PHISON E26

FLASH MEMORY 3D NAND

DRAM Cache 4GB LPDDR4

FORM FACTOR M.2 2280

INTERFACE PCIe Gen5x4, NVMe 2.0

COMPATIBILITY PCIe Gen5 Gen4 Gen3 Gen2 Gen1

DIMENSIONS 94.80mm (L) x 24.00mm (W) x 71.65mm (H)

SEQUENTIAL READ UP TO (MB S): 14,600

SEQUENTIAL WRITE UP TO (MB S): 12,700

MAXIMUM OPERATING POWER (W): 11.5

IDLE POWER PS3 (MW): 144

LOW POWER L1.2 (MW): 5

OPERATING TEMPERATURES: 0 degreeC “ 70 degreeC

STORAGE TEMPERATURES: -40 degreeC “ 85 degreeC

TERABYTES WRITTEN (TBW): 1400

MEAN TIME BETWEEN FAILURE (MTBF): Up to 1,600,000 Hours

LIMITED WARRANTY: 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.

ADVANCED FEATURES

TRIM (Performance Optimization, OS support required)

SMART (Self-Monitoring, Analysis and Reporting Technology)

LDPC (Low Density Parity Check) ECC Algorithm

End to End Data Path Protection

APST (Autonomous Power State Transition)

Pyrite (Encryption, Data Security)
