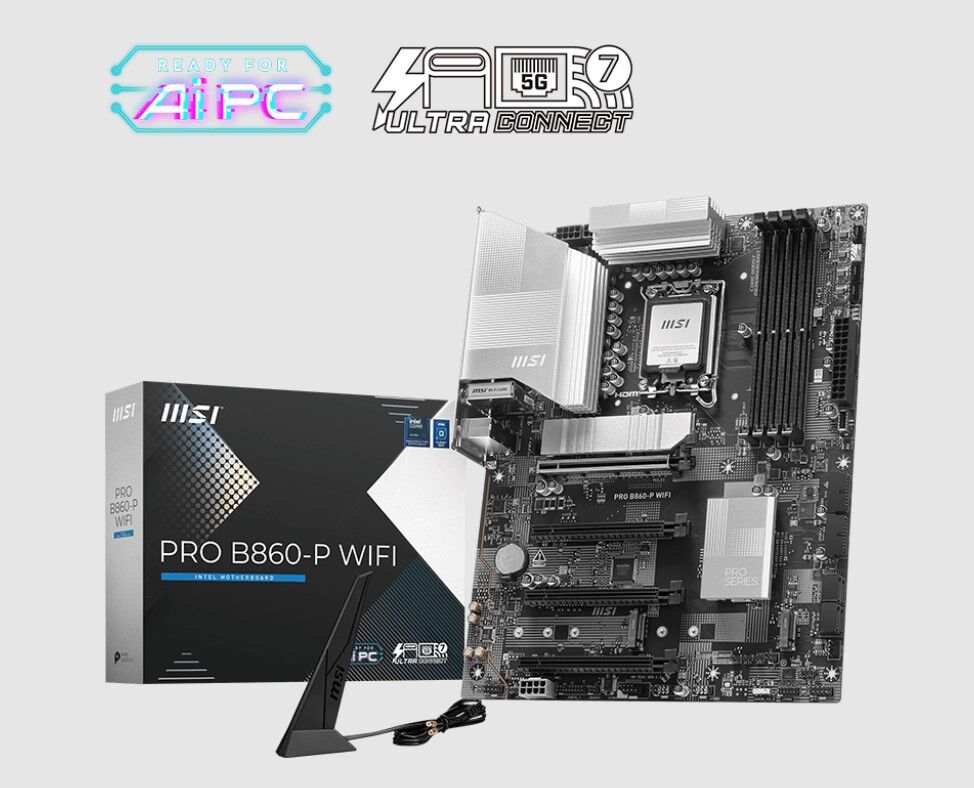

MSI PRO B860-P WIFI, INTEL B860, 4x DDR5 256GB, 1x HDMI, 4x PCI-E x16, 3x M.2, 4x SATA, 8x USB 2.0, Intel Wi-Fi 7

Chipset

INTEL B860

CPU Supports Intel Core„ Ultra Processors (Series 2)

LGA 1851

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support 8600 - 6400 (OC) MT s 6400 - 4800 (JEDEC) MT s

Max. overclocking frequency:

1DPC 1R Max speed up to 8600 MT s

1DPC 2R Max speed up to 7200 MT s

2DPC 1R Max speed up to 4800 MT s

2DPC 2R Max speed up to 4800 MT s

Supports Intel POR Speed and JEDEC Speed

Supports Memory Overclocking and Intel XMP 3.0

Supports Dual-Controller Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM

Onboard Graphics

1x HDMI„

Support HDMI„ 2.1, maximum resolution of 4K 60Hz

1x DisplayPort

Support DisplayPort 1.4, maximum resolution of 4K 60Hz

1x Type-C DisplayPort

Thunderbolt„ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K 120Hz 8K 60Hz

Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

4x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)

Storage

3x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 2260 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 2260 2242 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 2260 devices

4x SATA 6G

Onboard Thunderbolt 1x Thunderbolt4 ports (Rear)

Supports up to 40Gbps transfer rate with Thunderbolt devices

Supports up to 20Gbps transfer rate with USB4 devices

Supports up to 10Gbps transfer rate with USB 3.2 devices

Supports up to 5V 3A,15W power charging

Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices

Supports up to 8K display

USB

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

4x USB 5Gbps Type A (Front)

2x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Front)

1x USB 40Gbps Type C (Rear)

LAN Realtek 8126 5Gbps LAN

WIRELESS LAN BLUETOOTH Intel Wi-Fi 7

OPERATING SYSTEM Support for Windows 11 64-bit

PCB Info ATX

243.84mmx304.8mm
