MSI MAG PANO 130R PZ -BLACK “ ATX mATX ITX, 400mm GPU, 165mm CPU, 7 slots, 6—120mm, 360 rad top side, 2—USB-A, 1—USB-C 20Gbps, 460—232—490mm, 8.37kg

FEATURES

Support Back Back-Connect ATX Motherboard

Compatible with ATX PROJECT ZERO motherboards, allowing easy installation and streamlined cable management by routing cables through the rear.

Upgrade Airflow Layout

This model supports up to 10 fans and 360 mm radiator on top and side. The lower chamber also surrounded by vents further enhance heat dissipation for optimal performance.

Rotatable PCIe Bracket

One bracket, two orientations. A quick 90 degree rotation allows quick switching between horizontal and vertical GPU installations.

Dust Filter

Magnetic top and removable bottom dust filters enhance airflow while keeping your system clean, protecting internal components from dust buildup

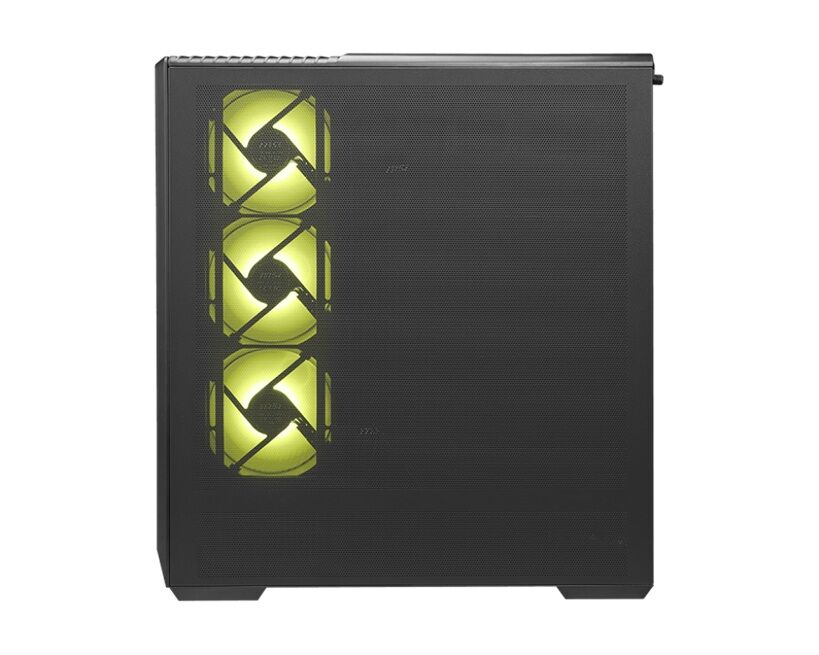

Pre build with Reverse Blades Fan

installed reverse blade fans on the side allow the unobstructed display of the ARGB fan fts beauty without interference.

SPECIFICATIONS

Product Name: MAG PANO 130R PZ BLACK

Case Form Factor: Mid-Tower

Motherboard Form Factor Support: Regular:

ATX Micro-ATX Mini-ITX

Back-connect:

ATX Micro-ATX

I O Ports: 2 x USB 5Gbps (Type-A)

1 x USB 20Gbps (Type-C)

1 x Audio-Out Mic-in

1 x Reset Button

1 x Power Button

Drive Mount Support: Up to 3 x 2.5 ft SSD

Up to 2 x 3.5 ft HDD

(Maximum of 3 drives can be mounted at once, depending on configuration)

Expansion Slots: 7

Maximum GPU Length: 400 mm 15.75 inches

Maximum CPU Cooler Height: 165 mm 6.50 inches

Power Supply Support: ATX

Maximum PSU Length: 180 mm 7.09 inches

Fan Size Support: Top: 3 x 120 mm 2 x 140 mm

Front: N A

Rear: 1 x 120 mm

Side: 3 x 120 mm

Bottom: 3 x 120 mm (Above the power shroud)

Pre-installed Fan Type: Rear: 1 x 120 mm ARGB Fan

Side: 3 x 120 mm ARGB Fan (Reverse Blade Fan)

Radiator Size Support: Top: 120 140 240 280 360 mm

Front: N A

Rear: 120 mm

Side: 120 240 360 mm

Bottom: N A

Dimensions (DxWxH): 460 x 232 x 490 mm 18.11 x 9.25 x

19.29 inches

Net Weight: Black: 8.37 kg 18.45 lbs

Gross Weight: Black: 10 kg 22.04 lbs
