Description

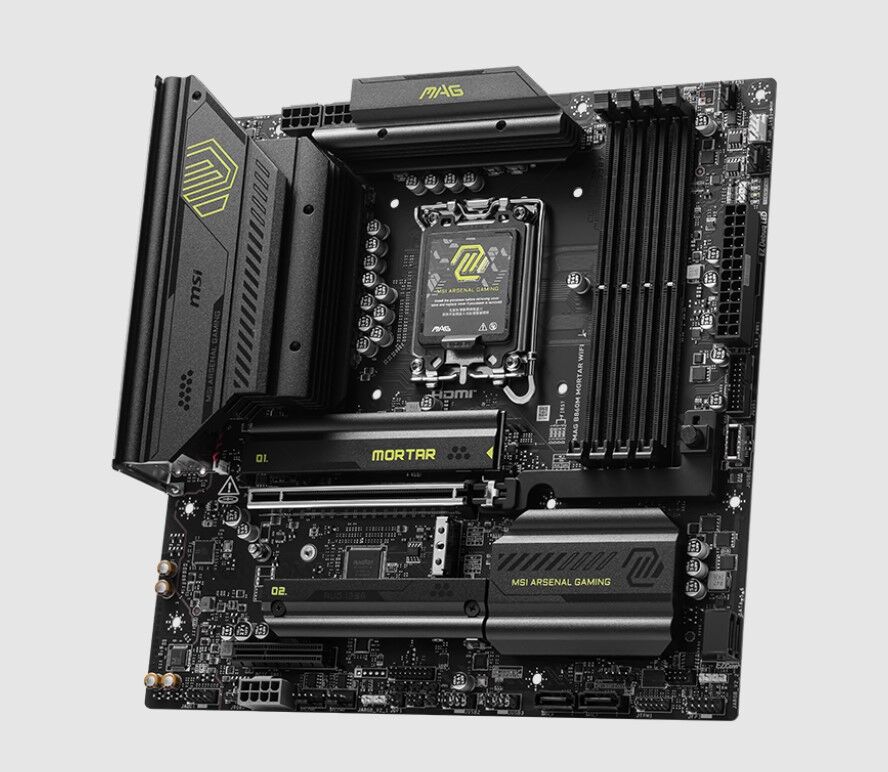

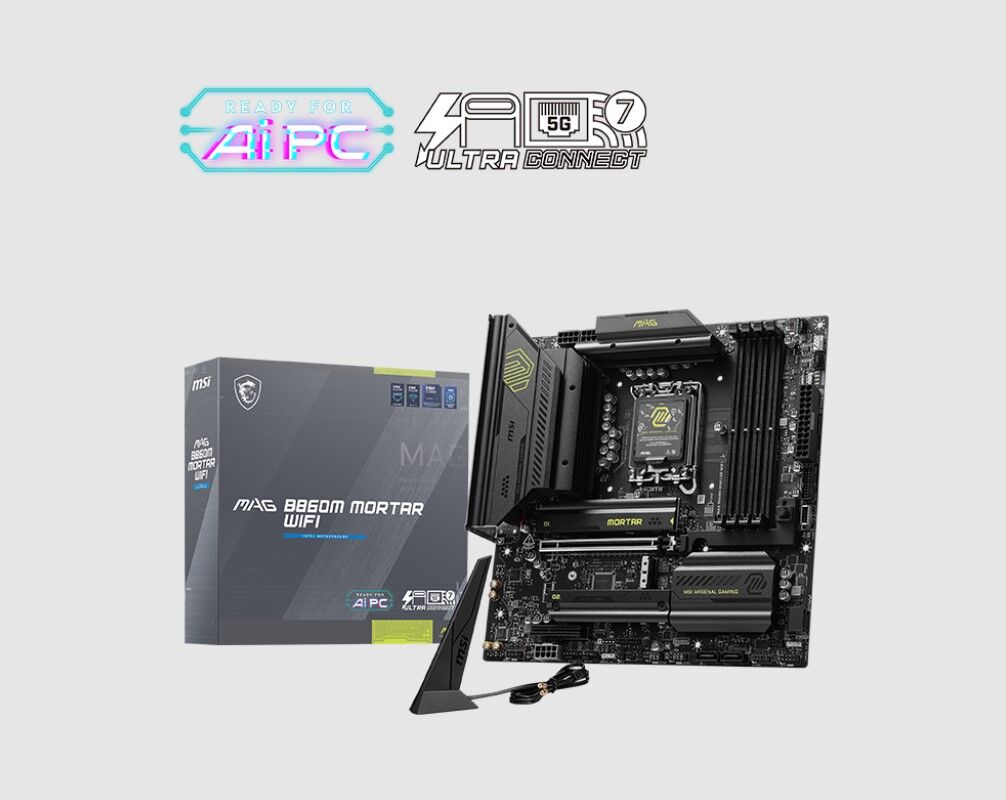

MSI MAG B860M MORTAR WIFI, INTEL B860, 4x DDR5 256GB, 1x HDMI, 1x PCI-E x16, 1x PCI-E x4, 3x M.2, 4x SATA 6G, 8x USB 2.0, Intel Killer BE1750x Wi-Fi 7


Chipset

INTEL B860


CPU

Supports Intel Core„ Ultra Processors (Series 2)

LGA 1851


Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB


Onboard Graphics

1x HDMI„

Support HDMI„ 2.1 with FRL, maximum resolution of 8K 60Hz

1x DisplayPort

Support DisplayPort 1.4, maximum resolution of 4K 60Hz

1x Type-C DisplayPort


Slot

1x PCI-E x16 slot

1x PCI-E x4 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)


Audio

Realtek ALC897 Codec

7.1-Channel High Definition Audio

Supports S PDIF output


Storage

3x M.2

4x SATA 6G


RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices


LAN

Intel Killer„ E5000 5Gbps LAN


Onboard Thunderbolt

Thunderbolt Resource CPU

1x Thunderbolt4 ports (Rear)

Supports up to 40Gbps transfer rate with Thunderbolt devices

Supports up to 20Gbps transfer rate with USB4 devices

Supports up to 10Gbps transfer rate with USB 3.2 devices

Supports up to 5V 3A,15W power charging

Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices

Supports up to 8K display

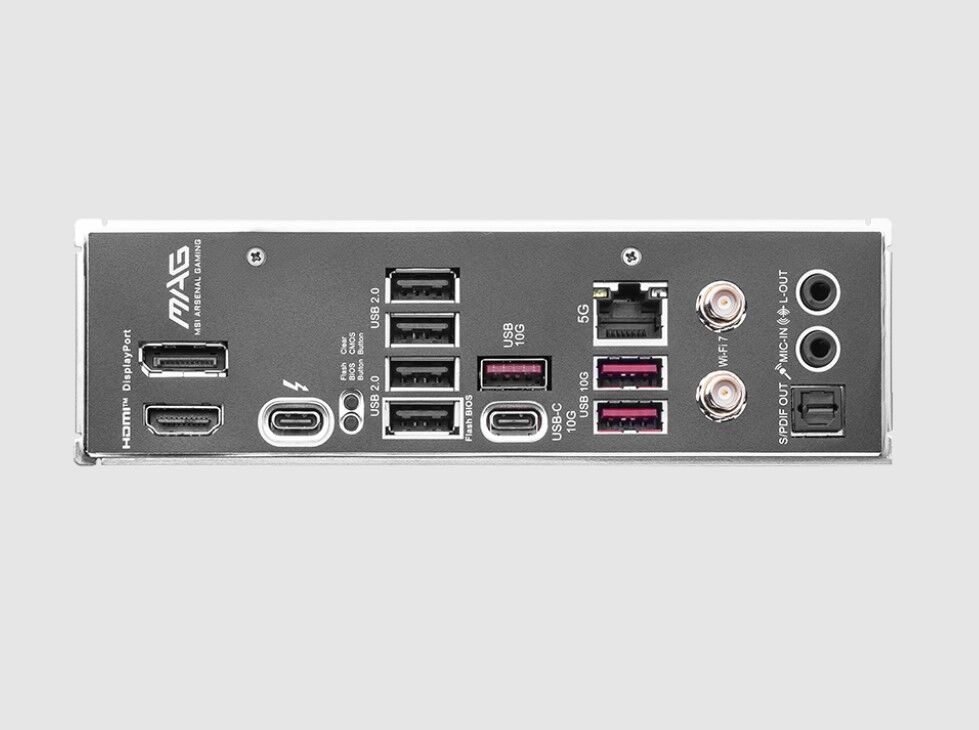

USB

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Front)

3x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Rear)

1x USB 10Gbps Type C (Front)


WIRELESS LAN BLUETOOTH Intel Killer„ BE1750x Wi-Fi 7


OPERATING SYSTEM Support for Windows 11 64-bit


PCB Info mATX

243.84mmx243.84mm

Specifications
SKU MBM-B860MMORTARWIFI
Barcode # 4711377287876
Brand MSI
Shipping weight 1.7200kg
Shipping width 0.378m
Shipping height 0.176m
Shipping length 0.384m

MSI MAG B860M MORTAR WIFI, INTEL B860, 4x DDR5 256GB, 1x HDMI, 1x PCI-E x16, 1x PCI-E x4, 3x M.2, 4x SATA 6G, 8x USB 2.0, Intel Killer BE1750x Wi-Fi 7

$350.90
RRP $390.85 save 10%

or 4 payments of $87.72 with Learn more

In Stock

Product Information

SKU:

MBM-B860MMORTARWIFI

Brand:

MSI

Barcode #:

4711377287876

Shipping Weigth:

1.7200kg
