pAlloy FCR200SC
pp
pp100Mbps Standalone Rackmount Media Converter
pp

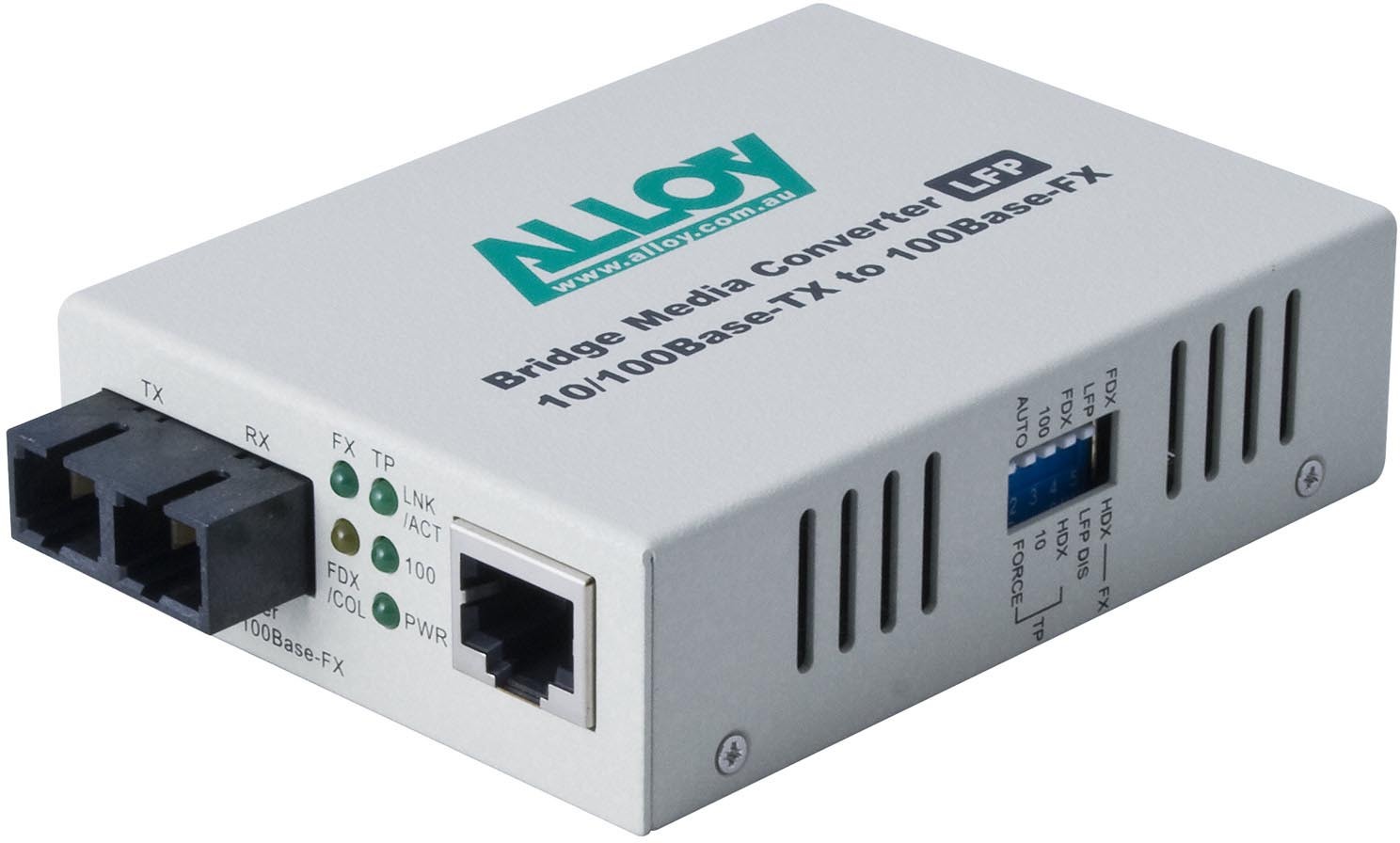

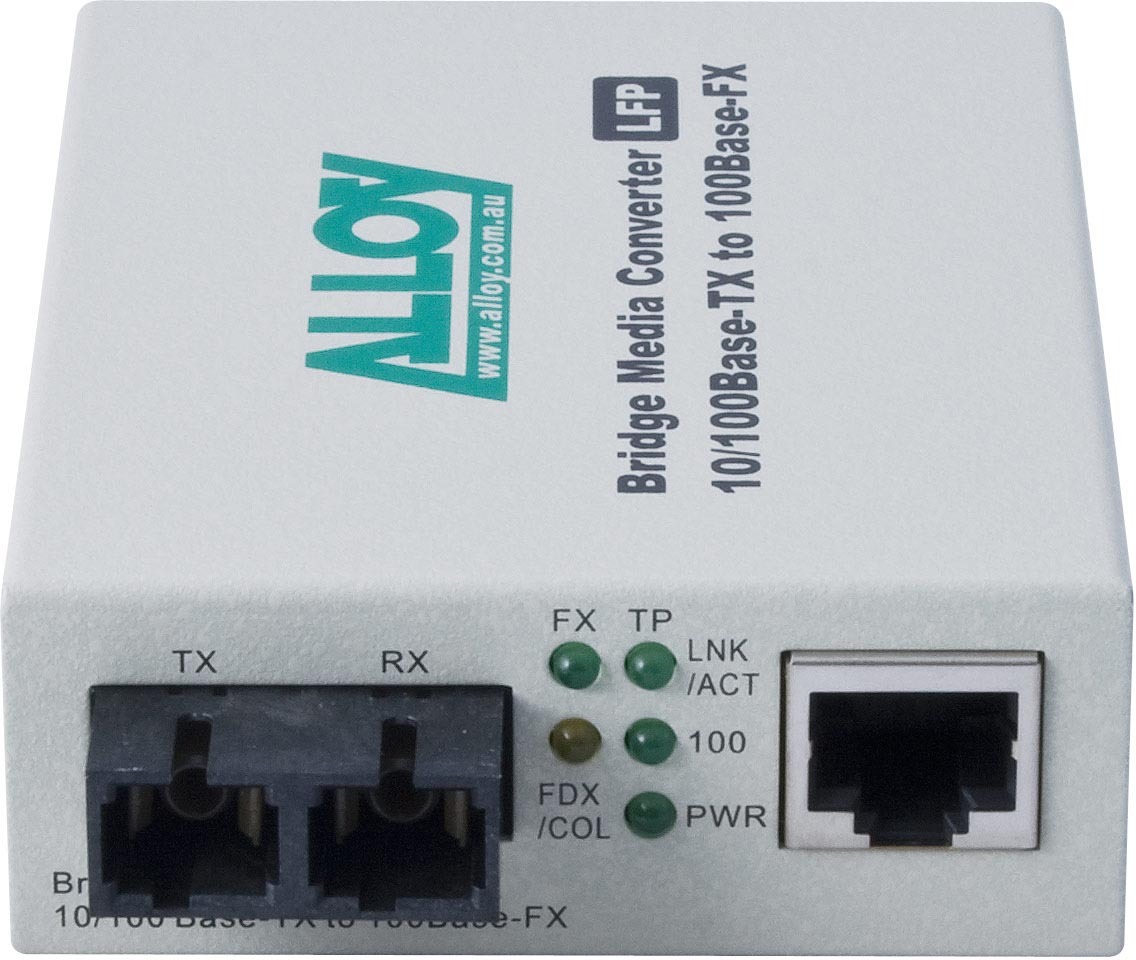

ppThe FCR200SC a FCR200 Series Fast Ethernet Media Converter can be used 'Standalone' or installed in an Alloy DCR12 Series Media Converter Chassis and has a 100Base-TX and a 100Base-FX multimode SC port. Fibre cable range is up to 2Km.
pp
ppThe FCR200SC is a dual purpose Fast Ethernet Media Converter. It can be used as a standalone discrete device or can be installed as a Media Converter Module into any Alloy DCR12 Series 12-slot Media Converter Chassis. Whichever mode the FCR200SC is used in it is a flexible solution ideal for a wide variety of media conversion applications in Fast Ethernet network environments. With dual 100Base-TX auto-sensing 10 100Mbps RJ-45 and 100Base-FX SC terminated multimode ports the FCR200LC is an ideal solution for UTP STP copper to Fast Ethernet multimode fibre media conversion tasks. The RJ-45 port supports Fast Ethernet and Ethernet UTP STP links at up to a 100 metres range and the 100Base-FX port has a maximum fibre cable range of up to 2 kilometres.
pp
ppFeatures:
pp
ppFCR200SC model: Fast Ethernet copper to 100Base-FX multimode fibre media conversion - 2Km range
ppDual Purpose FCR200 Series - use 'standalone' or install in a DCR12 Series Media Converter Chassis
ppFCR200 Series: Fast Ethernet copper to multimode singlemode and WDM Media Conversion solutions
ppFCR200 Series: models with copper to 1300nm and 1550nm singlemode fibre support
ppLC SC ST and MT-RJ fibre connectors supported on individual FCR200 Series models
ppUp to 100 kilometres fibre range supported with FCR200 Series Converters
ppEasy 'Slide-in Hot Swap' installation into DCR12 Media Converter Chassis systems
ppSupports Forced and Far-end Fault mode Link Fault Passthrough (LFP)

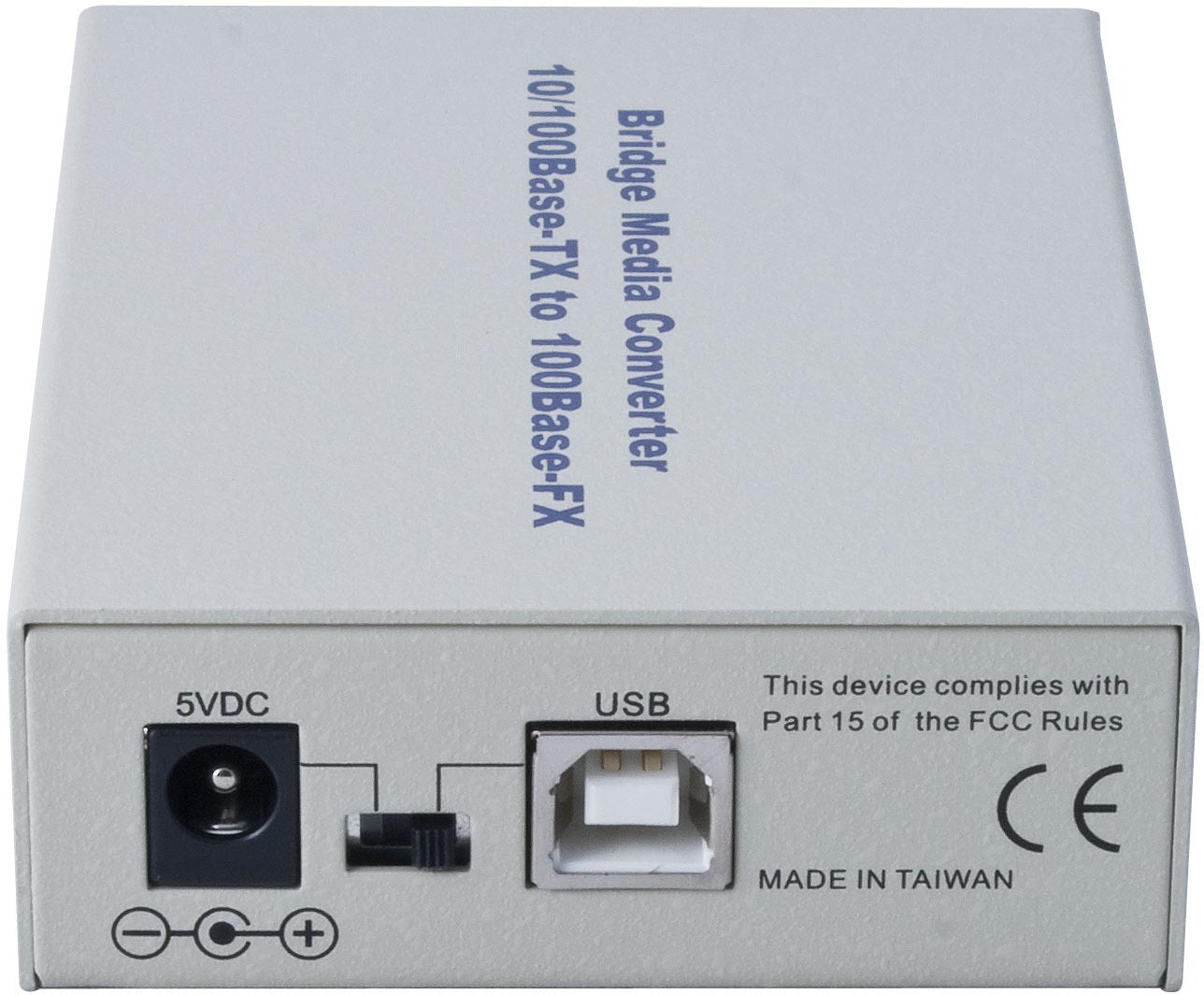

ppAll FCR200 models powered by external plugpack or via USB connection
ppCompact rugged all-metal case p
