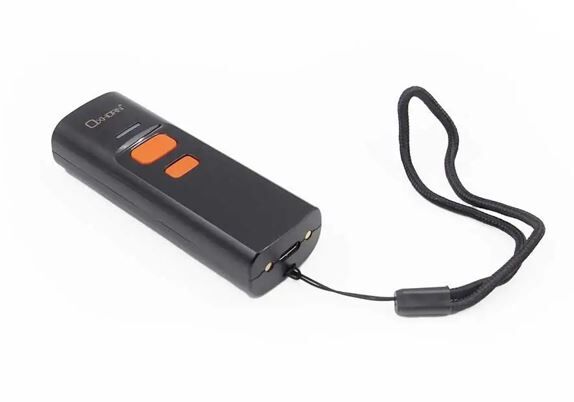

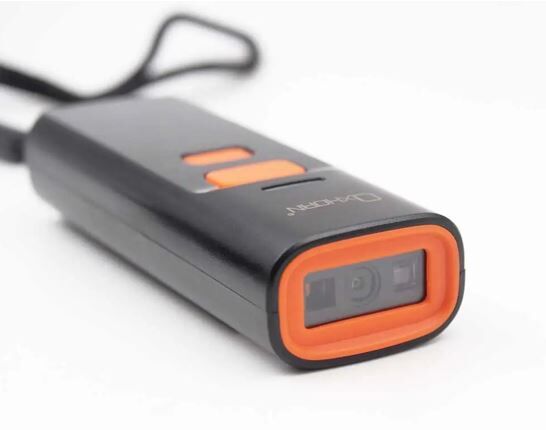

Oxhorn Mini Wireless 2.4G Bluetooth 5.0 2D Barcode Scanner Commercial Grade USB PlugPlay 5V 1A 12hr working Duration rechargeable battery Black

Specification

Wireless Frequency: 2.4G

Bluetooth version: 5.0

Transmit Distance: Bluetooth 30meter (Open distance) Wireless 20m (Open distance)

Storage：350Kb（over 20,000 Product codes）

Power Input: DC 5V 1A

Built-in rechargeable battery 1100mAh

Current ：180mA（WORK）

Charging Duration: About 5 hours

Working Duration: ‰¥12hours

Sleeping Duration: ‰¥4 weeks

Supported System: Windows，Mac OS，IOS, Linux，Unix，Android

Fast and reliable scanning helps improve productivity

Equipped with vibration motor, suitable for noisy environments

Scanner parameters

Communication Mode: USB-KBW，Bluetooth 5.0 HID BLE SPP

Sensor: CMOS

Pixel: 300,000 (640480), High quality 1000000（1280800）

Reading Precision: ‰¥5mil 0.127mm（PCS90pct,CODE 39）

Decoding Speed: 25CM S

Reading Mode: Trigger, Continuous, Induction

Scanning angle: Roll: ±360 degree，Pitch:±50 degree，Skew: ±50 degree (Test Conditions：CODE39,10mil 0.25mm,PCS90pct)

Decoding Capability：

2D: QR Code, Micro QR Code, Data Matrix，PDF417,，etc.

1D: Code 128EAN-13 EAN-8UPC-EUPC-AISBNISSNCode11ITF-25（Interleaved 2 0f 5）Code39Code93Code32CodabarMatrix 2 of 5Industrial 25IATA 25MSI Plessey，etc.

Button life ：500,000 times

Interface：USB

Working Temperature: -20„ƒ to 50„ƒ

Product Weight: 70g

Depth of Filed

Barcode Type Barcode Density Minimum Maximum

Code 39 5mil 30mm 110mm

Code 128 13mil 35mm 290mm

UPC EAN 0.33mm(13mil) 30mm 290mm

QR Code 15.0mil 10mm 180mm

Data Matrix 10mil 10mm 110mm

PDF 417 6.67mil 15mm 120mm

Testing Conditions: Environment Temperature = 24„ƒ, Ambient Light Illumination = 300LUX

Whats in the Box:

1 x Mini Wireless 2D Barcode Scanner

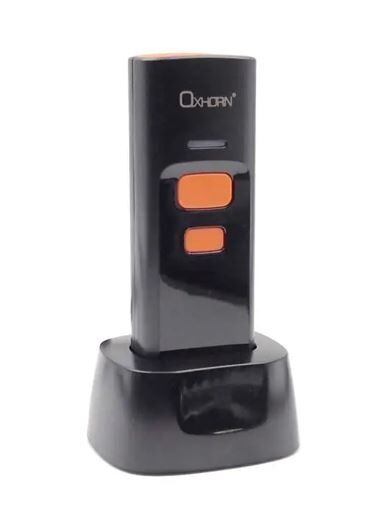

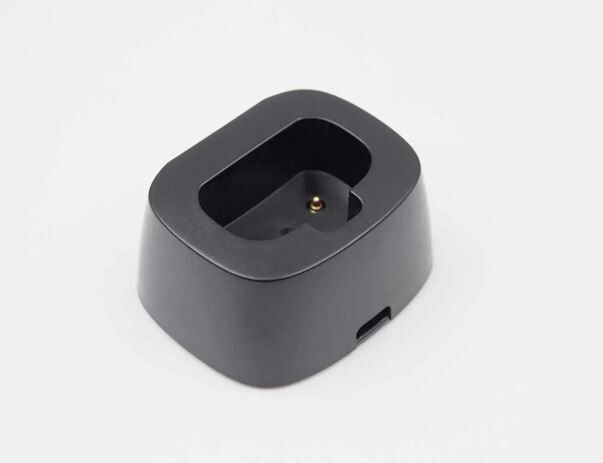

1 x Charging Base

1 x Wireless Receiver

1 x USB cable

1 x User Manual
