ASUS nVidia GeForce ROG-ASTRAL-LC-RTX5090-O32G-GAMING 32GB GDDR7 2580 MHz Boost clock 28 Gbps 512-bit Digital Max Resolution 7680 x 4320

Graphic Engine

NVIDIA GeForce RTX„ 5090

AI Performance

3593 TOPs

Bus Standard

PCI Express 5.0

OpenGL

OpenGL4.6

Video Memory

32GB GDDR7

Engine Clock

OC mode: 2610 MHz

Default mode: 2580 MHz(Boost clock)

CUDA Core

21760

Memory Speed

28 Gbps

Memory Interface

512-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 2 (Native HDMI 2.1b)

Yes x 3 (Native DisplayPort 2.1b)

HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink Crossfire Support

No

Accessories

1 x Speedsetup Manual

1 x ROG Graphics Card Holder

1 x ROG Velcro Hook Loop

1 x ROG Magnet

1 x ROG PCB Ruler

1 x Thank You Card

1 x Adapter Cable (1 to 4)‹

Software

ASUS GPU Tweak III MuseTree GeForce Game Ready Driver Studio Driver: please download all software from the support site.

Dimensions

Card 288.46 x 153.7 x 48 mm

Radiator: 400 x 120 x 65mm

Recommended PSU

1000W

Power Connectors

1 x 16-pin

Slot

2.5 Slot

AURA SYNC

ARGB

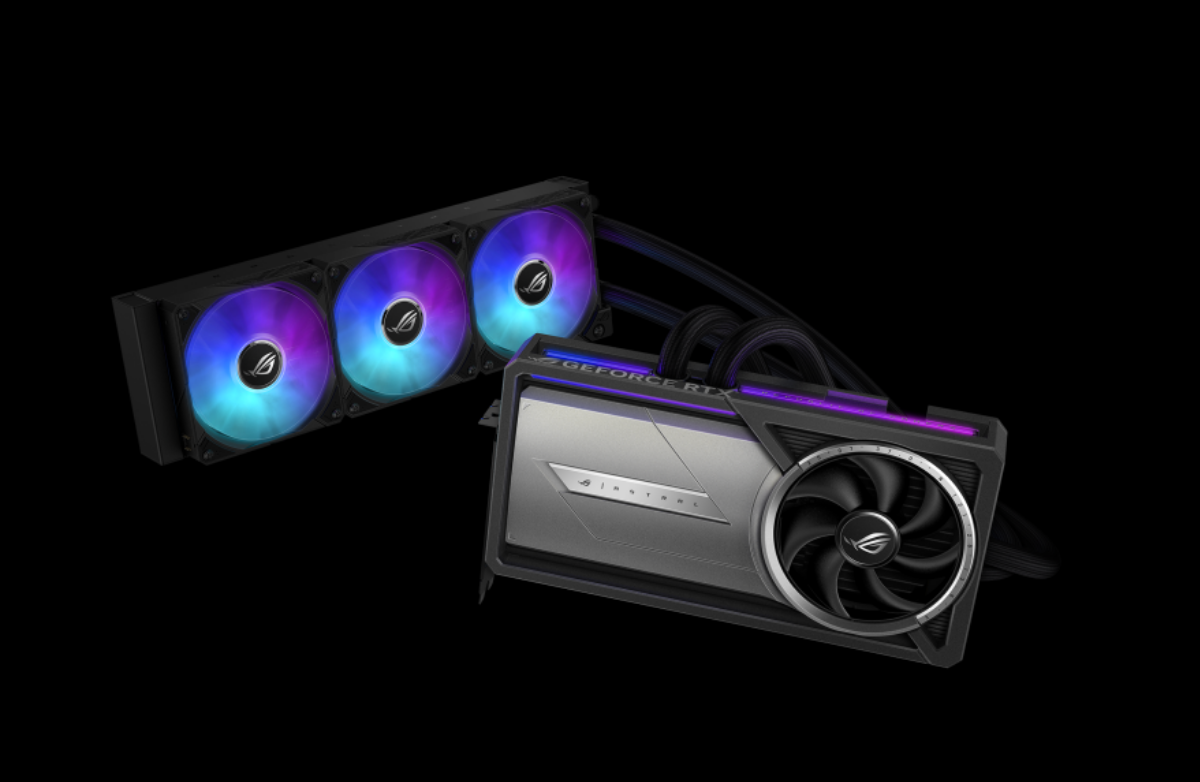

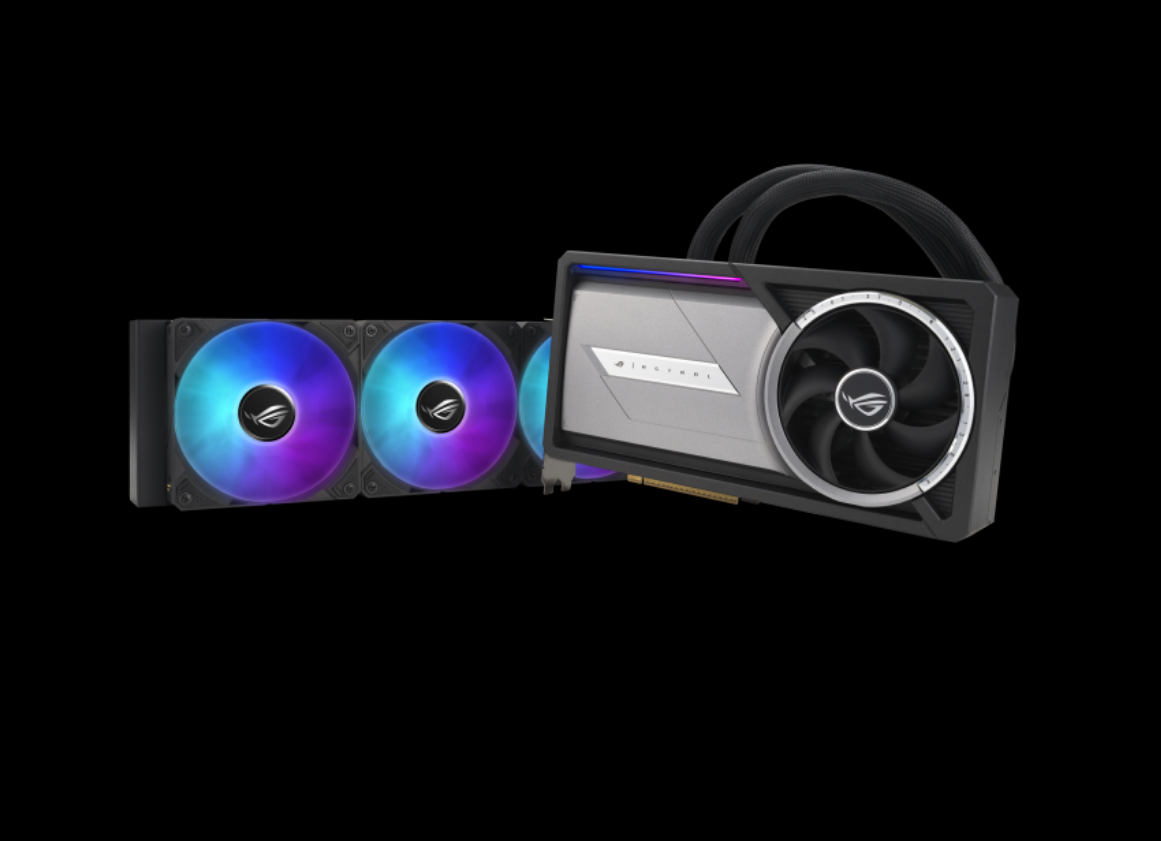

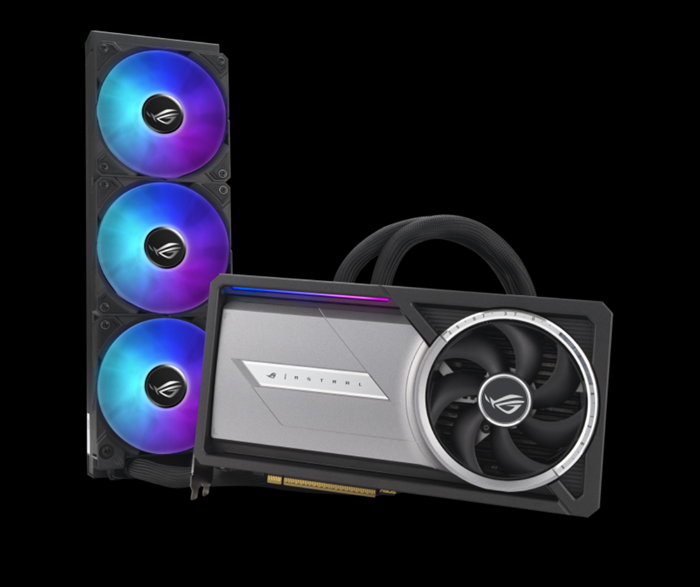

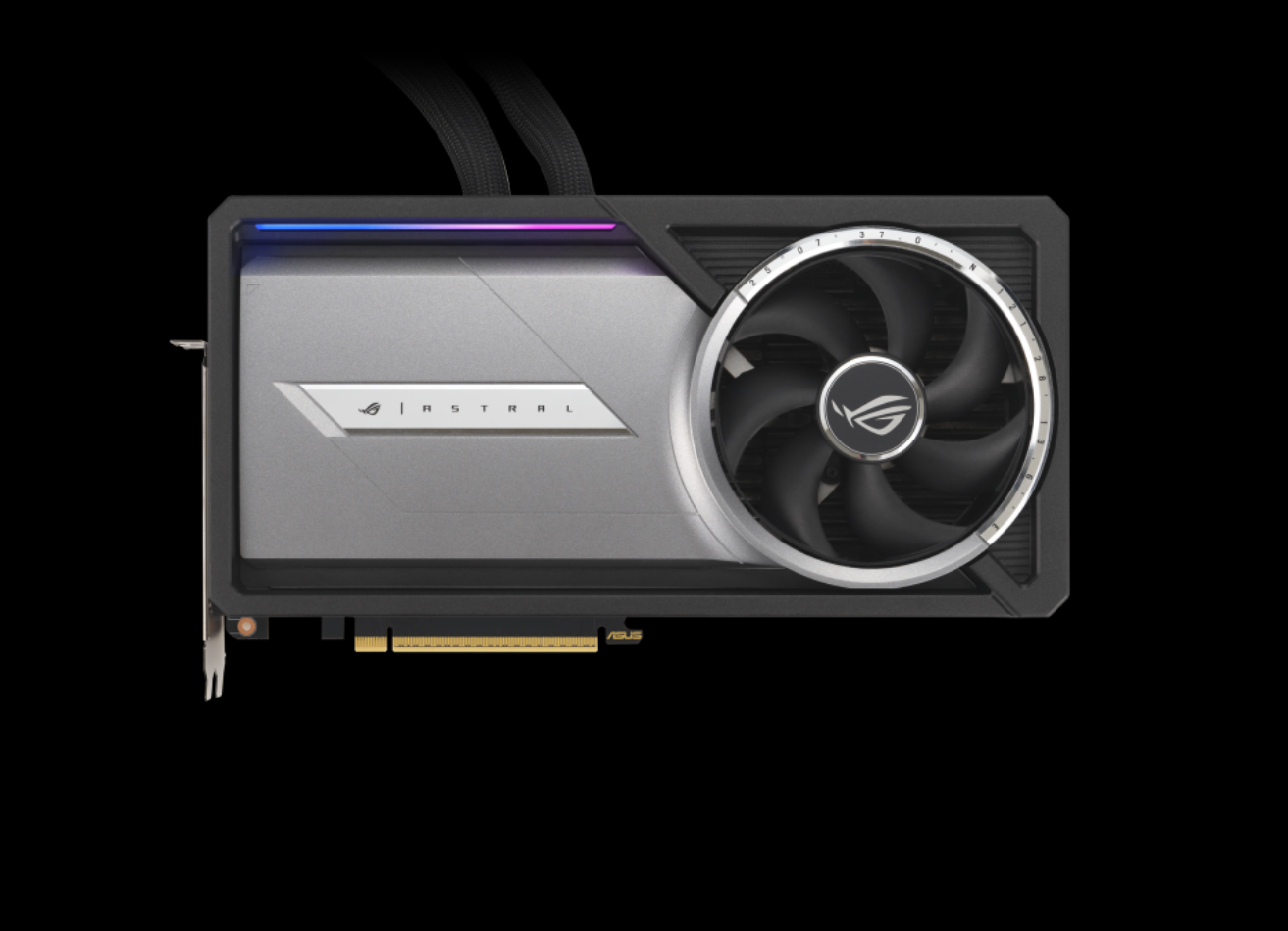

ROG Astral LC GeForce RTX„ 5090 32GB GDDR7 OC Edition

ROG Astral LC GeForce RTX„ 5090 32GB GDDR7 OC Edition “ Experience Fluid Force with a 360 mm AIO cooler for optimal performance that can achieve the highest GPU boost clock

AI Performance: 3593 AI TOPS

Powered by the NVIDIA Blackwell architecture and DLSS 4

OC mode: 2610 MHz (OC mode) 2580 MHz (Default mode)

360mm radiator balances compatibility and performance

Magnetic daisy-chainable fans make installation and cable management easier

Full-coverage cold plate brings liquid cooling to GPU die, VRMs and memory

Phase-change GPU thermal pad helps ensure optimal heat transfer, lowering GPU temperatures for enhanced performance and reliability

On-board cooling is handled by an axial-tech fan and low-profile heatsink

Powerful 80-amp MOSFETs help ensure enhanced performance, stability and higher overclocking potential

Secure GPU protection with GPU Guard technology securing four corners of the GPU and GPU bracket ensures stable mounting

Protective PCB coating guards against moisture, dust, and extreme temperatures

Auto-Extreme manufacturing process helps ensure precision and reliability

GPU Tweak III software provides intuitive performance tuning, advanced thermal controls and system monitoring
