Description

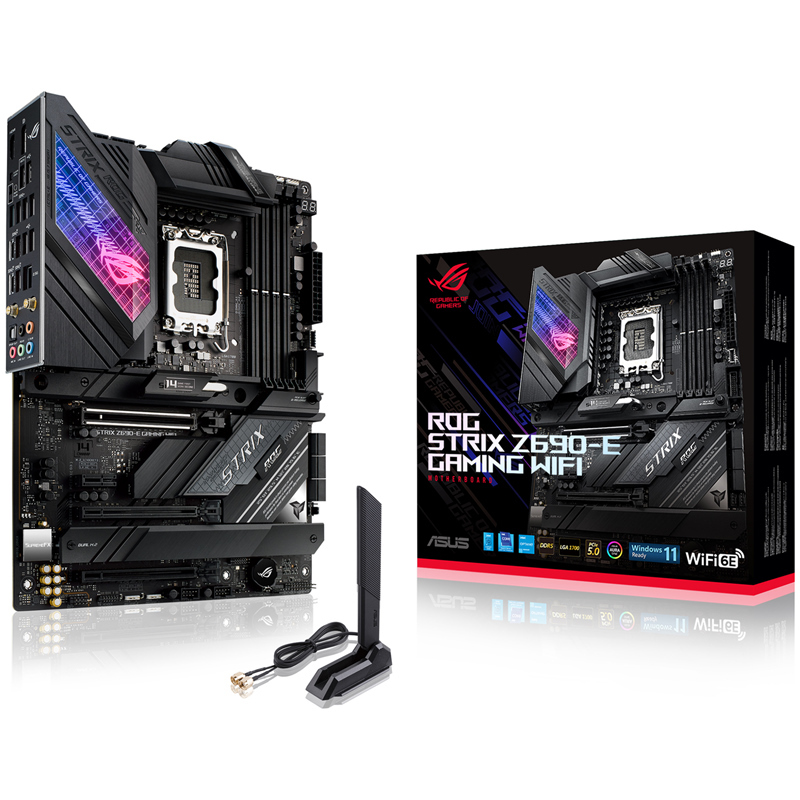

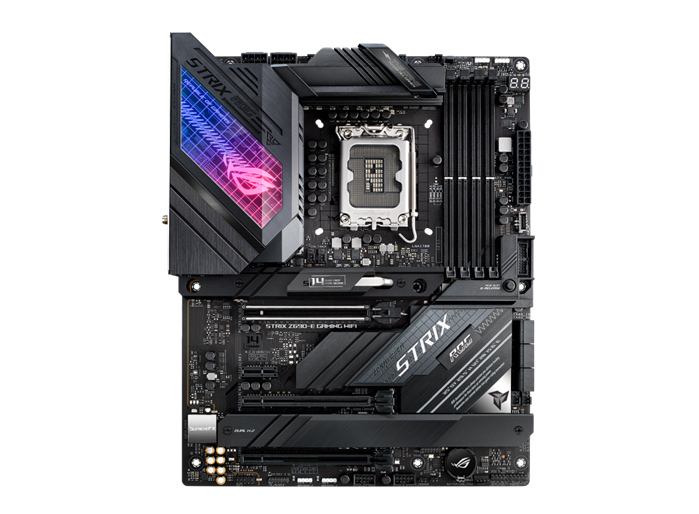

ASUS ROG STRIX Z690-E GAMING WIFI

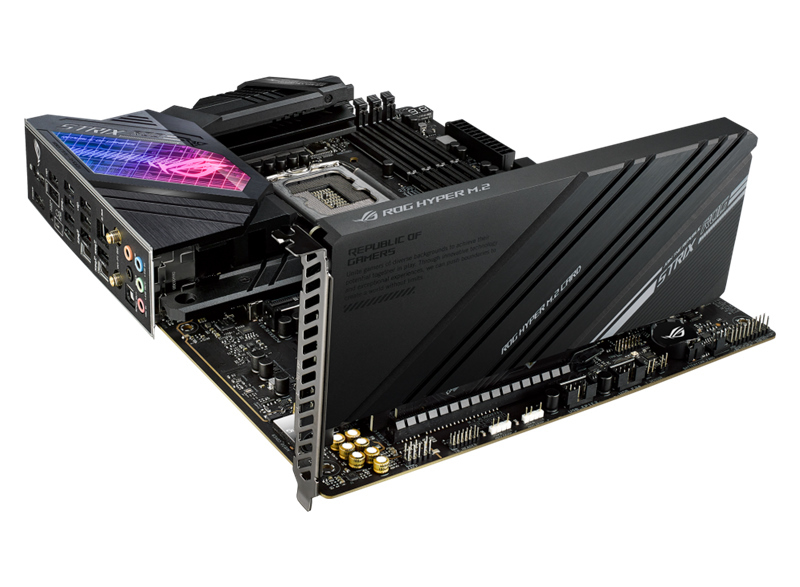

Intel Z690 LGA 1700 ATX motherboard with PCIe 5.0, 18+1 power stages, DDR5, Two-Way AI Noise Cancelation, WiFi 6E, Intel 2.5 Gb Ethernet, five M.2 slots with heatsinks (including two on the bundled ROG Hyper M.2 card), PCIe 5.0 NVMe SSD support, M.2 Combo-Sink, M.2 backplate, PCIe Slot Q-Release, USB 3.2 Gen 2x2 Type-C, SATA and Aura Sync RGB lighting



Ready for 12th Gen Intel Core„, Pentium Gold and Celeron processors

Optimal Power Solution: 18+1 power stages with 8+8 ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors

Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, an M.2 Combo-sink for PCIe 5.0 M.2 slot and M.2 heatsinks for two M.2 slots

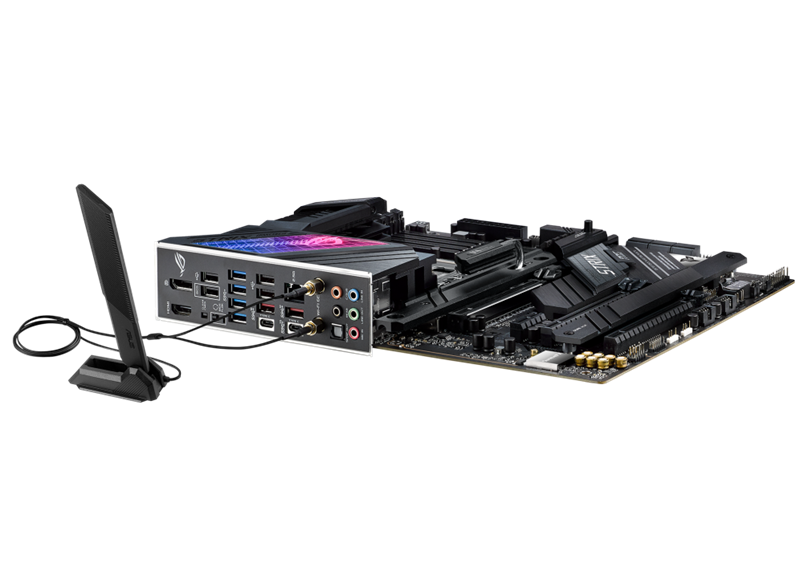

High-performance Networking: On-board Intel WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard

Best Gaming Connectivity: Supports HDMI 2.1 and DisplayPort„ 1.4 output, five M.2 slots (including two on the bundled ROG Hyper M.2 card) plus USB 3.2 Gen 2x2 Type-C

Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance

DIY Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack„ button, and Clr CMOS button

Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including a RGB header and three addressable Gen 2 headers

Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III

Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86

Specifications
SKU MBA-Z690-E-ROG-WF
Barcode # 4711081494645
Brand ASUS
Shipping weight 3.4600kg
Assembled length 0.308m
Assembled height 0.108m
Assembled width 0.366m

ASUS ROG STRIX Z690-E GAMING WIFI Intel LGA 1700 ATX Motherboard, DDR5, PCIe5.0, WiFi 6E, Intel 2.5 Gb Ethernet, 5xM.2, USB-C. HDMI, DP. RGB (WIFI6)

$576.52
RRP $629.00 save 8%

or 4 payments of $144.13 with Learn more

Sold Out

Product Information

SKU:

MBA-Z690-E-ROG-WF

Brand:

ASUS

Barcode #:

4711081494645

Shipping Weigth:

3.4600kg
