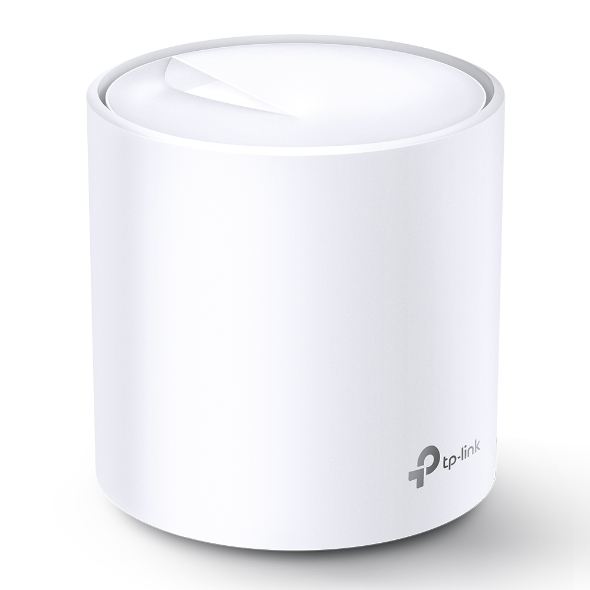

TP-Link Deco X60(1-pack) AX3000 Whole Home Mesh Wi-Fi 6 Unit

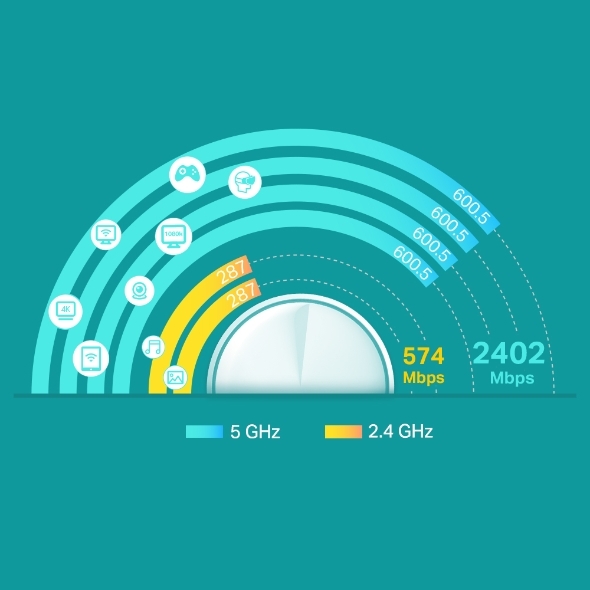

Faster Connections: Wi-Fi 6 speeds up to 3,000 Mbps”2,402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.

Connect More Devices: OFDMA and MU-MIMO technology quadruple capacity to enable simultaneous transmission to more devices.

Boosted Seamless Coverage: Achieve seamless whole-home coverage with a clearer and stronger whole-home Wi-Fi signal generated by Wi-Fi 6.

Ultra-Low Latency: Greater reduction in latency enables more responsive gaming and video chatting.

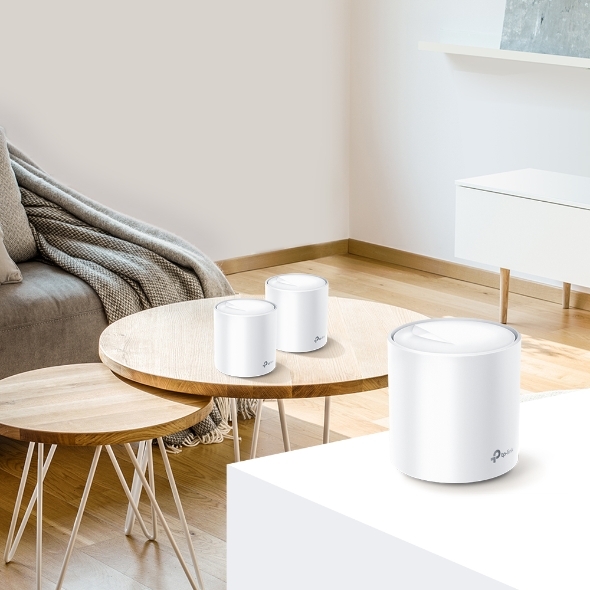

One Unified Network: Multiple units form a whole-home network that auto-selects the best connection as you move around your home.

Total Security: WPA3 encryption and TP-Link HomeCareTM provide personalized features, including Parental Controls, Antivirus, and Quality of Service (QoS) to ensure a safer online experience.

Setup Made Easier Than Ever: The Deco app walks you through the setup step-by-step.

HARDWARE FEATURES

Processor Qualcomm 1 GHz Quad-core CPU

Interface 2 LAN/WAN Gigabit Ethernet Ports

Button 1 Reset button on the underside

Dimensions Φ4.33 in. × 4.49 in. (Φ110 mm × 114 mm)

Antenna 4 internal antennas per Deco unit

WIRELESS FEATURES

Wireless Standards IEEE 802.11 ax/ac/n/a 5 GHz, IEEE 802.11 ax/n/g/b 2.4 GHz

Frequency 5 GHz

2.4 GHz

Signal Rate 2402 Mbps (5 GHz)

574 Mbps (2.4 GHz)

Transmit Power FCC: <30 dBm

CE: <20 dBm (2.4 GHz)

<23 dBm (5 GHz)

Wireless Security WPA-PSK

WPA2-PSK

WPA3

Advanced Functions —� Router/ Access Point Mode

—� Optional Ethernet Backhaul

—� TP-Link Mesh Technology:

MU-MIMO

OFDMA

1024-QAM

BSS Color

Auto Path Selection

Self-Healing

AP Steering

Band Steering

Beamforming

SOFTWARE FEATURES

Quality of Service WMM

IPv6 Suppport

WAN Type Dynamic IP/Static IP/PPPoE

Management Local Management, Remote Management

DHCP Server, Client

Port Forwarding Support

Access Control Blacklist

Firewall Security SPI Firewall

Protocols Supports IPv4 and IPv6
