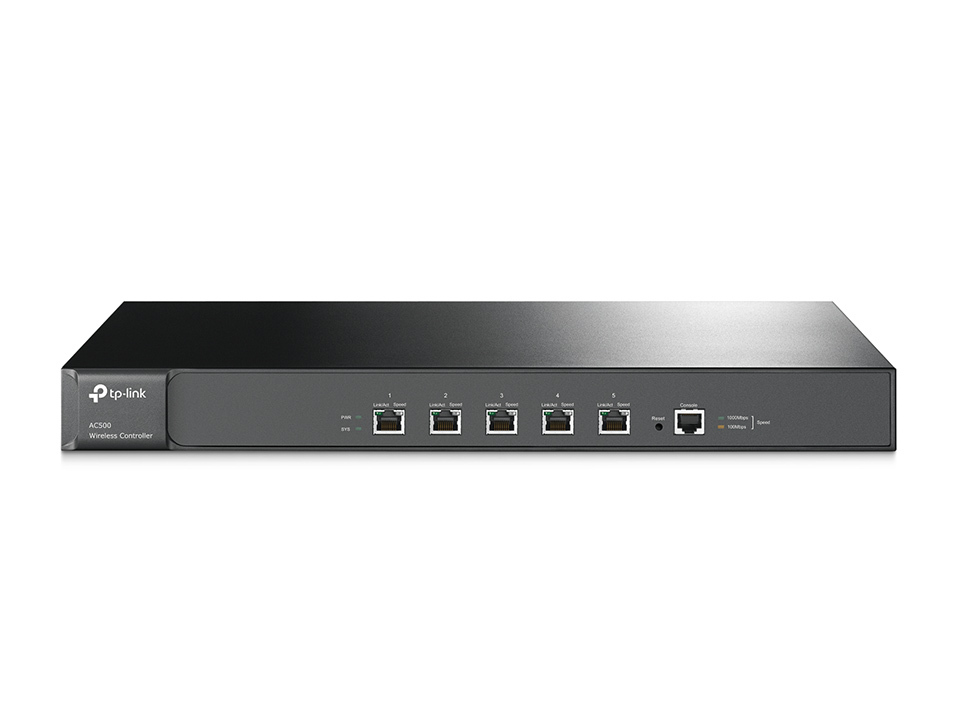

TP-Link AC500 Wireless Controller, 5* Gigabit, Up To 500 APs, 32 SSIDs

Auto-detect and centralized management, up to 500 CAPs

License-free management reduces the OPEX of enterprise network

Easy deployment without changing the existing network topology

Unified configuration of wireless networks, support mapping of SSID and VLAN

Support MAC authentication, portal authentication

Dual-link back up for management safety

HARDWARE FEATURES

Installation Rack-mount

Processor 1GHz Dual-core MIPS64 network dedicated processors

Memory 256MB DDR3*2, 32MB Flash*1

Interface Gigabit Ethernet Port*5

Console Port*1

Power Supply 100～240V AC,50/60Hz

LED Port: Link/Act, 1000M/100M

Device: PWR, SYS

Dimensions ( W x D x H ) 17.3*8.7*1.7 in. (440 × 220 × 44 mm)

Environment Operating Temperature: 0„ƒ~40„ƒ (32„‰~104„‰); Storage Temperature: -40„ƒ~70„ƒ (-40„‰~158„‰)

Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

FEATURES

Management Scale Up to 500 APs

Wireless Fuction L3 Management

Multi-SSID

Load Balance

Band Steering

DHCP Server

WMM

Communication protocol

Wireless Security SSID to VLAN Mapping

AP Isolation

SSID Isolation

Encryption

AP Management AP Automatic Discovery

AP Unified Configuration

AP Reboot Schedule

AP Batch Firmware Upgrade

Grouped AP management

AP LED ON/OFF

Web-based Management

Authentication Captive Portal Authenticaton

MAC Authentication

System status AP Status

Client Status

Authenticated User Status

System Management Configuration Backup/Import

Ping/Tracert Tool

System Log
