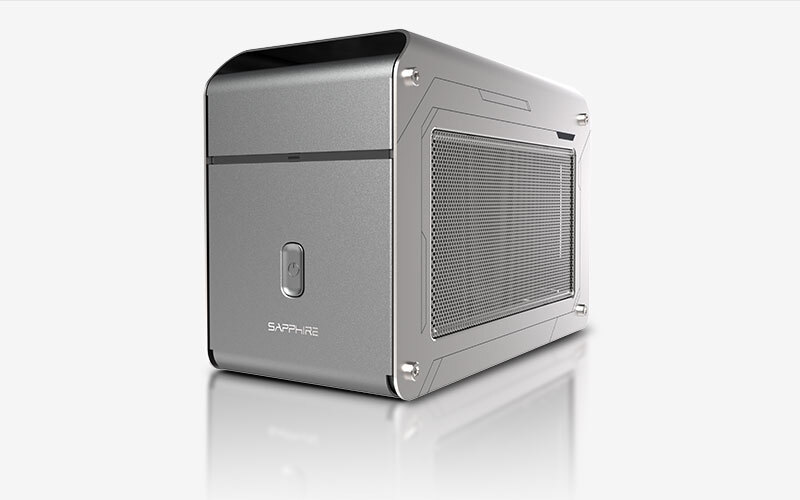

SAPPHIRE GEARBOX 500 Thunderbolt 3 eGFX External Enclosure Compatible With PCIe 3.0 X16 nVidia & AMD GPUs, MAC/WIN OS

GearBox 500 Thunderbolt„ 3 eGFX enclosure enables users to convert a Thunderbolt „ 3 / 4 Mac or Windows 10 device into a powerful productivity and gaming desktop. The enclosure features a lightning quick 40Gbps Thunderbolt„ 3 connecting interface that handles various types of data and is capable of charging a Thunderbolt „ 3 / 4 configured laptop.

Compatible with both AMD and Nvidia Graphics Cards

**Max Dimension: 266 mm (L) x 125 mm (H) / 10.5' (L) x 4.9' (H)

Specification

Connect to PC Thunderbolt„ 3/4 using 40Gbps Cable / Power Delivery up to 60 Watts

GPU Support GPU Type:

Single / Double Slot, Full Length, PCI-Express x16 Graphics Cards

GPU Max. Power support: 350 Watts

Graphics Outputs Depends on the capabilities of installed graphics card

PCI-Express Bus PCI-Express 3.0 x16 in x4 mode

Input Thunderbolt„ 3/ 4 (USB-C for connection to PC)

Output 2 x USB 3.0

Gigabit Ethernet 10/100/1000

Internal Power Supply 500 Watts

Operating Systems Apple macOS Monterey 12.1 or later

Windows 10 64-bit / Windows 11 64-bit

*32-bit Windows 10/11, Windows 7 and Linux are not supported.

AMD Radeon Graphics Series*

**Max Dimension: 266 mm (L) x 125 mm (H) / 10.5' (L) x 4.9' (H)

AMD RADEON RX 6700 XT

AMD RADEON RX 6600 XT

AMD RADEON RX 6600

AMD RADEON RX 5700 XT

AMD RADEON RX 5700

AMD RADEON RX 5600 XT

AMD RADEON RX 5500 XT

AMD RADEON VII

AMD RADEON RX 590

AMD RADEON RX Vega 56 ITX

AMD RADEON RX 580

AMD RADEON RX 570

AMD Radeon Graphics Series*

AMD Radeon Pro WX 7100

NVIDIA GeForce Graphics Series*

**Max Dimension: 266 mm (L) x 125 mm (H) / 10.5' (L) x 4.9' (H)

NVIDIA GeForce RTX 3060

NVIDIA GeForce RTX 3060Ti

NVIDIA GeForce RTX 2060

NVIDIA GeForce RTX 2070

NVIDIA GeForce GTX 1080

NVIDIA GeForce GTX 1070

NVIDIA GeForce GTX 1060

NVIDIA GeForce Titan X

NVIDIA Quadro GPU Solutions*

NVIDIA Quadro P4000
