Essentials

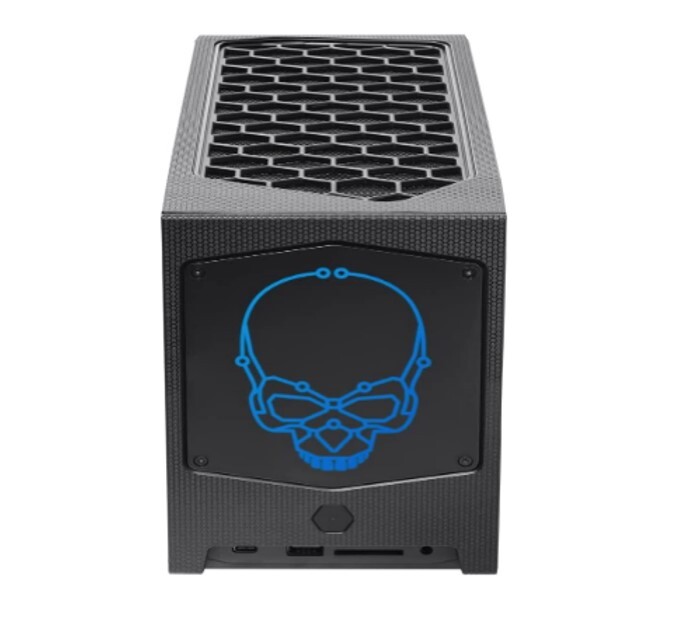

Product Collection Intel NUC Kit with 12th Generation Intel Core„ Processors

Code Name Products formerly Dragon Canyon

Supported Operating Systems Windows 11 | 64-bit* | Windows 10 | 64-bit*

Board Form Factor PCIe

Internal Drive Form Factor M.2 SSD

# of Internal Drives Supported 3

TDP 65 W

Board Chipset Intel Z690 Chipset

Processor Included Intel Core„ i7-12700 Processor (25M Cache | up to 4.90 GHz)

Total Cores 12

Total Threads 20

Lithography Intel 7

Max Turbo Frequency 4.90 GHz

Warranty Period 3 yrs

Embedded Options Available No

Max Memory Size (dependent on memory type) 64 GB

Memory Types DDR4 3200MHz 1.2V SO-DIMM DDR4 3200 MHz 1.35V SO-DIMM - XMP is required to enable 1.35V memory

Max # of Memory Channels 2

Max Memory Bandwidth 51.2 GB/s

Max # of DIMMs 2

ECC Memory Supported ¡ No

Integrated Graphics ¡ Yes

Graphics Output 2x Thunderbolt 4 | HDMI 2.0b

# of Displays Supported ¡ 3

Discrete Graphics Via PCIe add-in card

PCI Express Revision Gen5 | Gen4

PCI Express Configurations ¡ 2x M.2 PCIe X4 Gen4 slots (PCH) | M.2 PCIe X4 Gen4 slots (CPU); Double-wide PCIe X16 Gen5 (CPU) slot | 12' max card length

Removable Memory Card Slot SDXC with UHS-II support

M.2 Card Slot (wireless) Intel Wi-Fi 6E AX211

M.2 Card Slot (storage) 2x via PCH + 1x via CPU (NVMe)

# of USB Ports 12

USB Configuration Rear: 6x USB 3.2g2 | 2x TB4 (USB 3.2g2); Front: USB 3.2g2 Type-A and Type-C; Internal Header: 2x USB 2.0

USB Revision 3.2 Gen2 | 2.0

USB 2.0 Configuration (External + Internal) 2x int.

Total # of SATA Ports 2

Max # of SATA 6.0 Gb/s Ports 2

RAID Configuration 2x M.2 SATA/PCIe SSD (RAID-0 RAID-1)

Audio (back channel + front channel) 7.1 digital; L+R+mic (F)

Integrated LAN 10GbE (AQC113)

Integrated Wireless¡ Intel Wi-Fi 6E AX211(Gig+)

Integrated Bluetooth Yes

Additional Headers 2x USB2.0 | FRONT_PANEL

# of Thunderbolt„ Ports 2x Thunderbolt„ 4
