Essentials

Product Collection Intel NUC Kit with 12th Generation Intel Core„ Processors

Code Name Products formerly Serpent Canyon

Supported Operating Systems Windows 11 | 64-bit*

Socket Soldered-down BGA

Internal Drive Form Factor M.2 SSD

# of Internal Drives Supported 3

Extended Life Program (XLP) No

DC Input Voltage Supported 19.5 VDC

Processor Included Intel Core„ i7-12700H Processor (24M Cache | up to 4.70 GHz)

Total Cores 14

Total Threads 20

Lithography Intel 7

Max Turbo Frequency 4.70 GHz

Warranty Period 3 yrs

Use Conditions PC/Client/Tablet

Embedded Options Available No

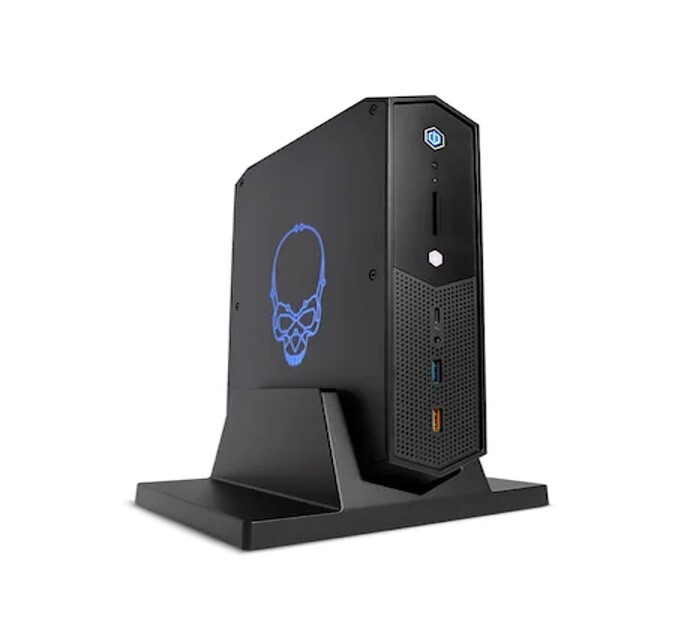

Description Other features: Includes far-field dual array microphones | stand for vertical operating orientation | VESA mounting plate | RGB-backlit logo with replaceable mask.

Max Memory Size (dependent on memory type) 64 GB

Memory Types DDR4-3200 1.2V SO-DIMM

Max # of Memory Channels 2

Max Memory Bandwidth 51.2 GB/s

Max # of DIMMs 2

ECC Memory Supported ¡ No

Integrated Graphics ¡ Yes

Graphics Output 2x Thunderbolt„ 4 | HDMI (4K60) | 2x DP 1.4 Cert

Discrete Graphics Intel Arc„ A770M Graphics w/ 16GB GDDR6 VRAM

PCI Express Revision Gen4 | Gen3

PCI Express Configurations ¡ 2x M.2 slots w/ PCIe x4 Gen4 | 1x M.2 slot w/ PCIe x4 Gen3

Removable Memory Card Slot SD Express PCIe G3 NVMe UHS-I

M.2 Card Slot (wireless) 22x30

M.2 Card Slot (storage) 3x 22x80

# of USB Ports 10

USB Configuration 3x front (2x Type-A | 1x Type-C) and 5x rear (4x Type-A | 1x Type-C); 2x USB 2.0 via internal headers

USB Revision 2.0 | 3.2 Gen2

USB 2.0 Configuration (External + Internal) 2

USB 3.0 Configuration (External + Internal) 8

Total # of SATA Ports 1

Max # of SATA 6.0 Gb/s Ports 1

Audio (back channel + front channel) 7.1 digital; L+R+mic (F); L+R+TOSLINK (R)

Integrated LAN Intel Ethernet Connection i225-LM

Integrated Wireless¡ Intel Killer(tm) Wi-Fi 6E AX1690 (i/s)
