Description

Product Collection Intel NUC Kit with 11th Generation Intel Core„ Processors

Code Name Products formerly Tiger Canyon

Supported Operating Systems Windows 11 Home* | Windows 11 Pro* | Windows 10 Home | 64-bit* | Windows 10 IoT Enterprise* | Windows 10 Pro | 64-bit* | Red Hat Linux* | Ubuntu 20.04 LTS*

Board Number NUC11TNBi7

Board Form Factor UCFF (4' x 4')

Socket Soldered-down BGA

Internal Drive Form Factor M.2 and 2.5' Drive

# of Internal Drives Supported 2

TDP 28 W

DC Input Voltage Supported 12-20 VDC

Processor Included Intel Core„ i7-1165G7 Processor (12M Cache | up to 4.70 GHz)

Total Cores 4

Total Threads 8

Lithography 10 nm SuperFin

Max Turbo Frequency 4.70 GHz

Embedded Options Available No

Max Memory Size (dependent on memory type) 64 GB

Memory Types DDR4-3200 1.2V SO-DIMMs

Max # of Memory Channels 2

Max # of DIMMs 2

ECC Memory Supported ¡ No

Integrated Graphics ¡ Yes

Graphics Output Dual HDMI 2.0b w/HDMI CEC | Dual DP 1.4a via Type C

# of Displays Supported ¡ 4

PCI Express Revision Gen 4 (m.2 22x80 slot); Gen 3 (otherwise)

PCI Express Configurations ¡ PCIe x4 Gen 4: M.2 22x80 (key M) PCIe x1: M.2 22x30 (key E)

M.2 Card Slot (wireless) 22x30 (E)

M.2 Card Slot (storage) 22x80 NVMe (M)

# of USB Ports 4

USB Configuration Front: 2x USB 3.2 Rear: 2x USB 4 (type C) | 1x USB 3.2 | 3x USB 2.0 Internal: 2x USB 2.0 (headers)

Total # of SATA Ports 1

Serial Port via Internal Header Yes

Integrated LAN Dual Intel Ethernet Controller i225-LM

Integrated Wireless¡ Intel Wi-Fi 6 AX201

Integrated Bluetooth Yes

Additional Headers Front_panel (PWR | RST | 5V | 5Vsby | 3.3Vsby); Internal 2x2 power connector

# of Thunderbolt„ Ports 1x Thunderbolt„ 4 | 1x Thunderbolt„ 3

Specifications
SKU SYI-NUC11I7TNHL
Barcode # 5032037205191
Brand Intel
Shipping weight 1.9000kg
Shipping width 0.238m
Shipping height 0.216m
Shipping length 0.308m
Assembled length 2.080m
Assembled height 1.160m
Assembled width 1.380m

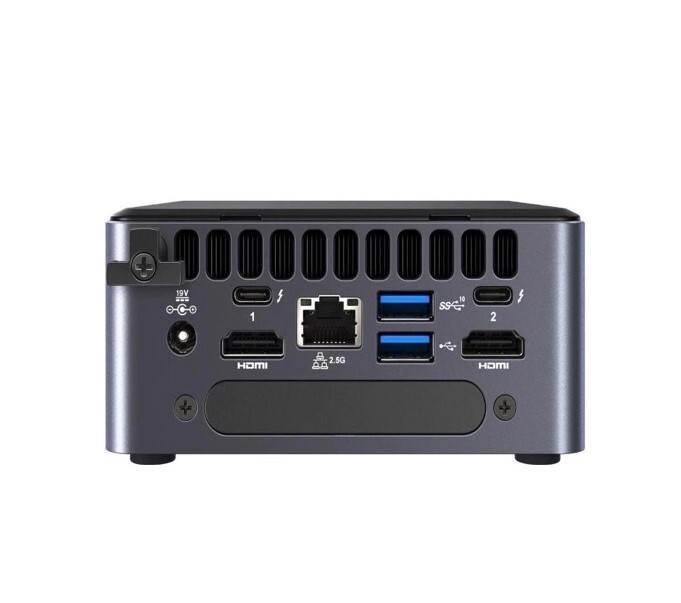

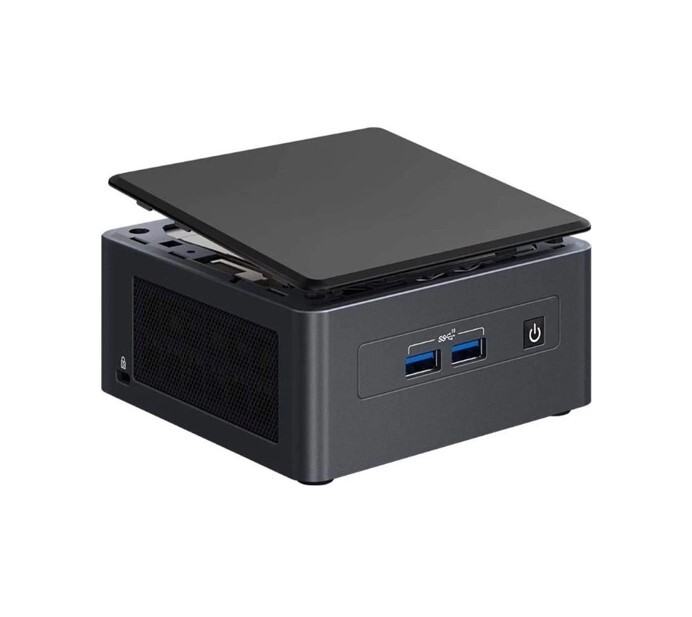

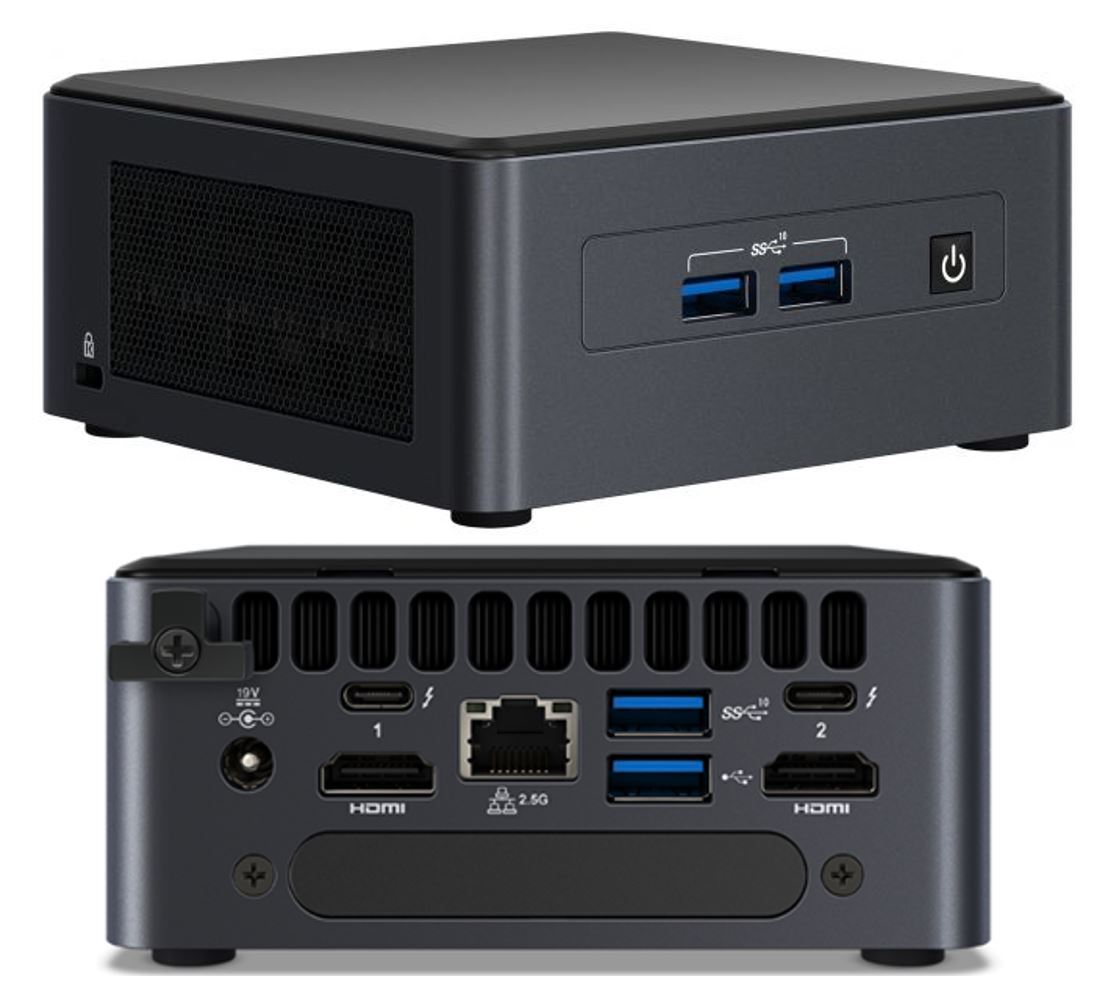

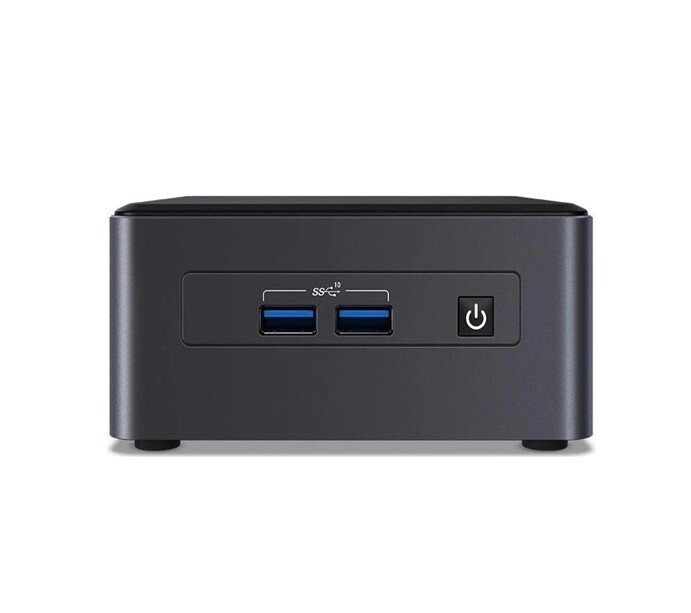

Intel NUC i7-1165G7 Pro 4.7 GHz 2xDDR4 SODIMM M.2 2.5 ft SSD 4xDisplays Iris Xe 2xHDMI 2xDP via USB-C 2xThuderbolt WiFi6 4xUSB GbE LAN no AC Cord

$980.73
RRP $1,049.00 save 7%

or 4 payments of $245.18 with Learn more

Sold Out

Product Information

SKU:

SYI-NUC11I7TNHL

Brand:

Intel

Barcode #:

5032037205191

Shipping Weigth:

1.9000kg
