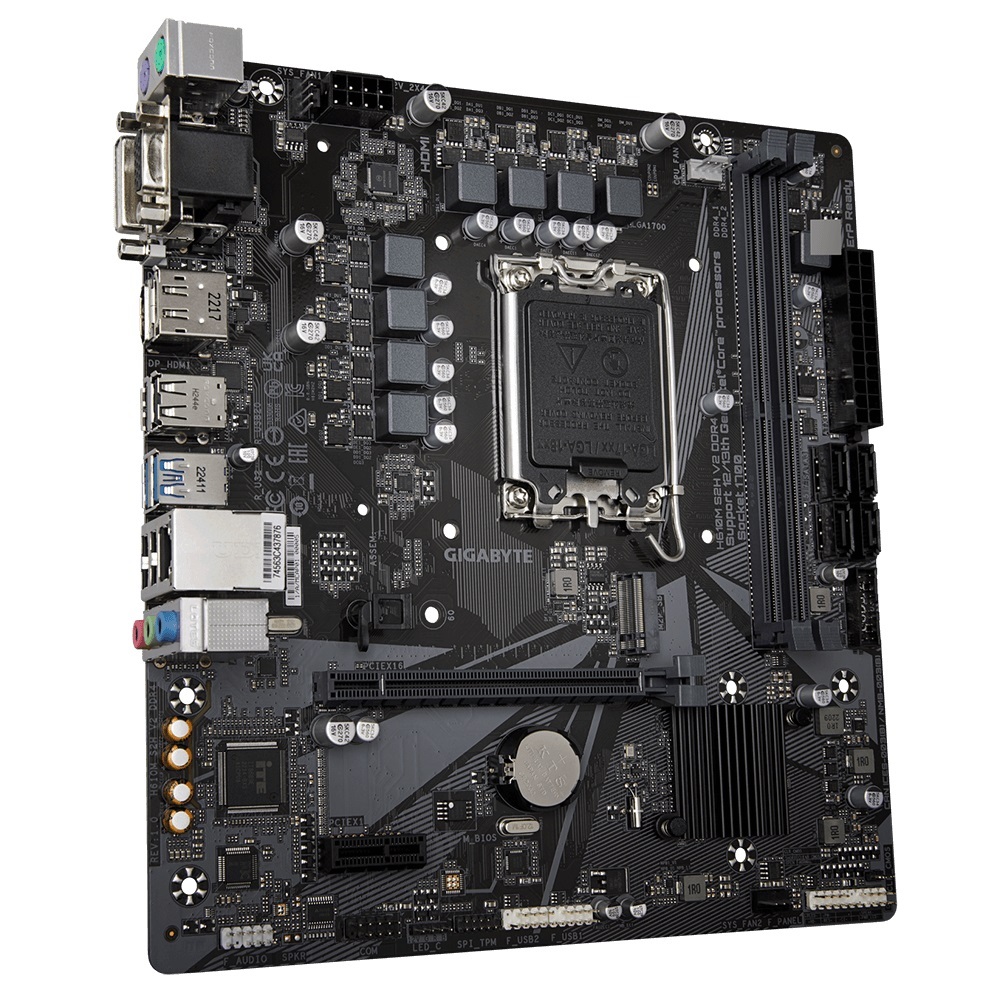

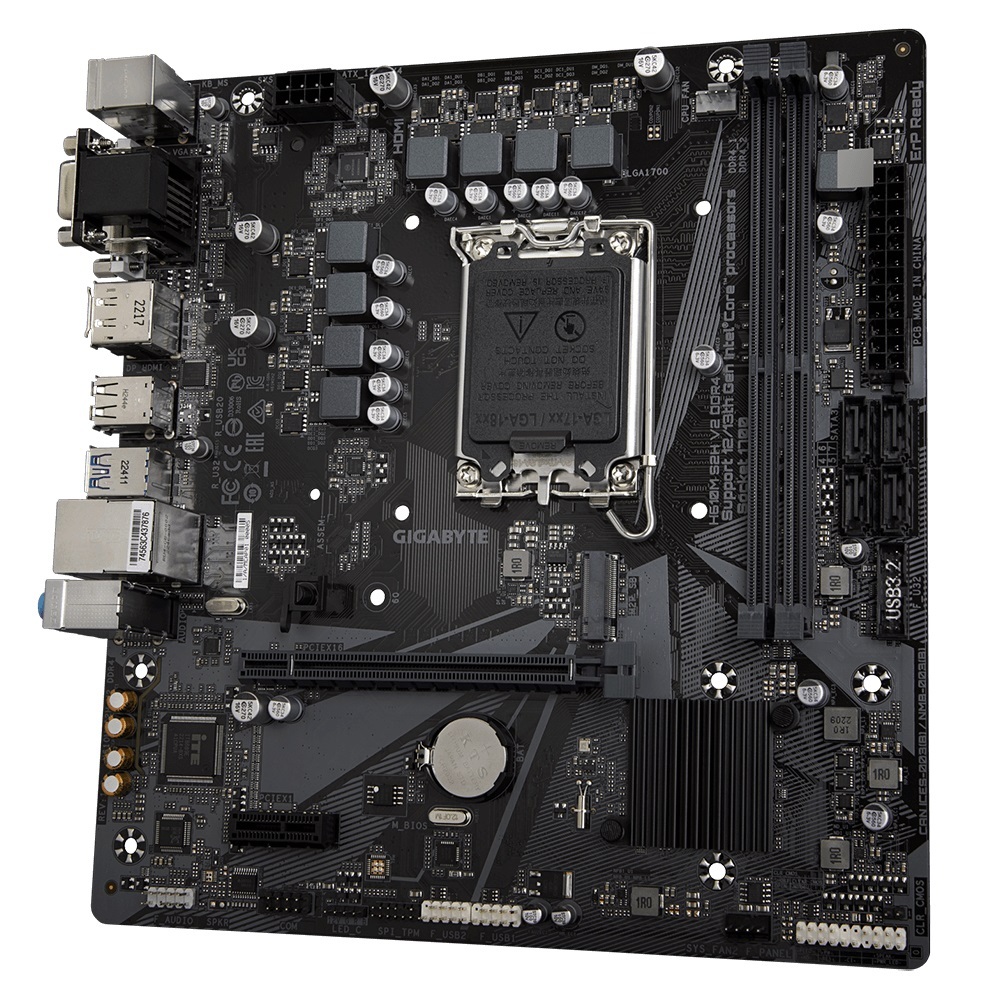

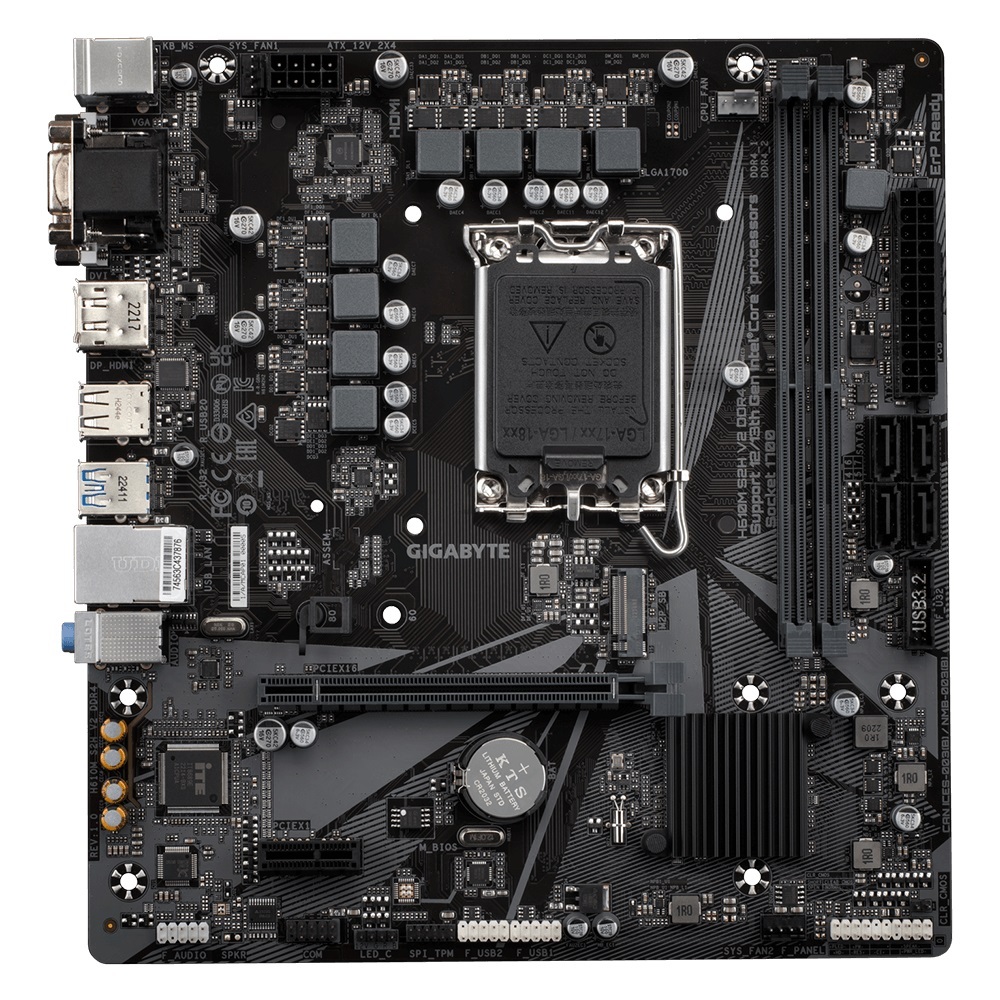

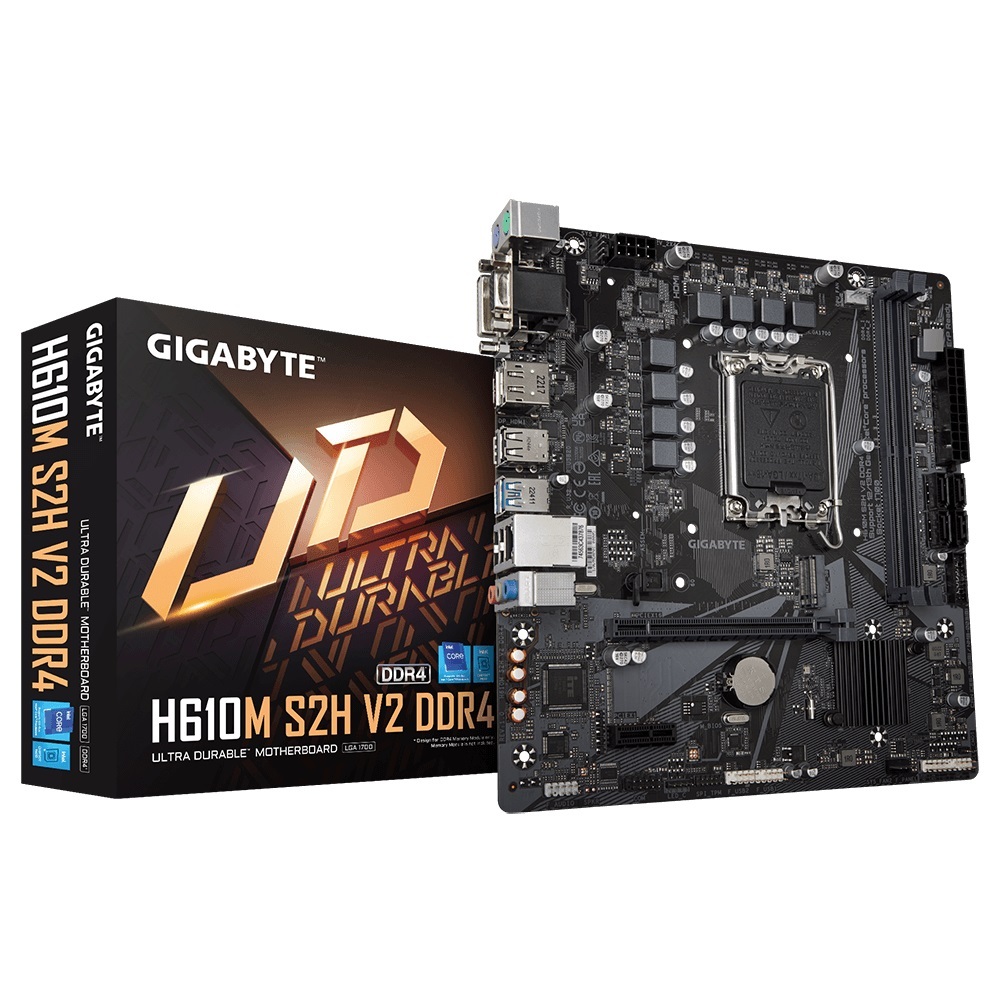

Gigabyte H610M S2H V2 DDR4 1.0 Intel LGA 1700 mATX Motherboard, 2x DDR4 ~64GB, 1x PCI x16=, 1x PCI=E x1, 1x M.2, 4x SATA, 4x USB3.2, 4x USB 2(NEED UPD
Supports 12th Gen Intel Core Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
6+1+1 Hybrid Digital VRM Design
GIGABYTE Gaming LAN with Bandwidth Management
NVMe PCIe 3.0 x4 M.2
HDMI / DVI-D / D-Sub Ports for Multiple Display
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design
CPU
LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors*
L3 cache varies with CPU
* Please refer to 'CPU Support List' for more information.
Chipset
Intel H610 Express Chipset
Memory
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer 'Memory Support List' for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Audio
SKU | MBG-H610MS2HV2D4 |
Barcode # | 4719331851958 |
Brand | Gigabyte |
Shipping weight | 1.4600kg |
Shipping width | 0.366m |
Shipping height | 0.156m |
Shipping length | 0.368m |
Assembled length | 2.680m |
Assembled height | 0.560m |
Assembled width | 2.660m |
Gigabyte H610M S2H V2 DDR4 1.0 Intel LGA 1700 mATX Motherboard 2x DDR4 ~64GB 1x PCI x16= 1x PCI=E x1 1x M.2 4x SATA 2x USB3.2 4x USB 2
or 4 payments of $39.73 with Learn more
Product Information
SKU:
MBG-H610MS2HV2D4
Brand:
Gigabyte
Barcode #:
4719331851958
Shipping Weigth:
1.4600kg
