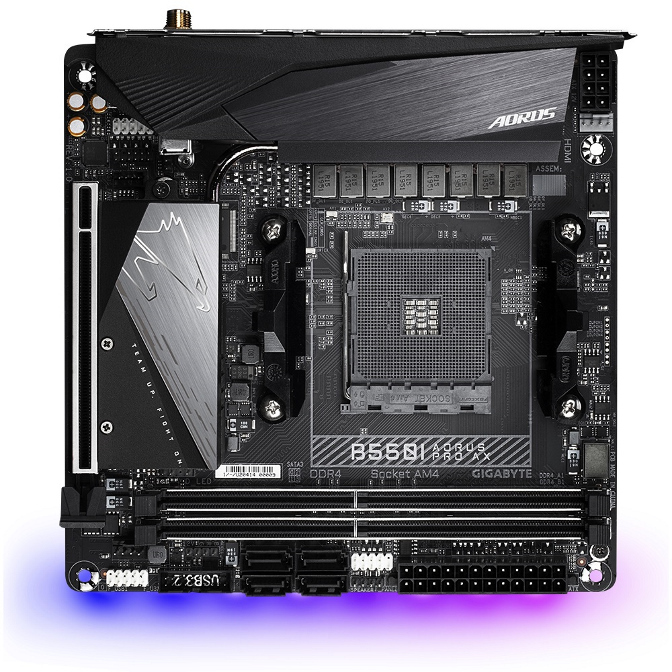

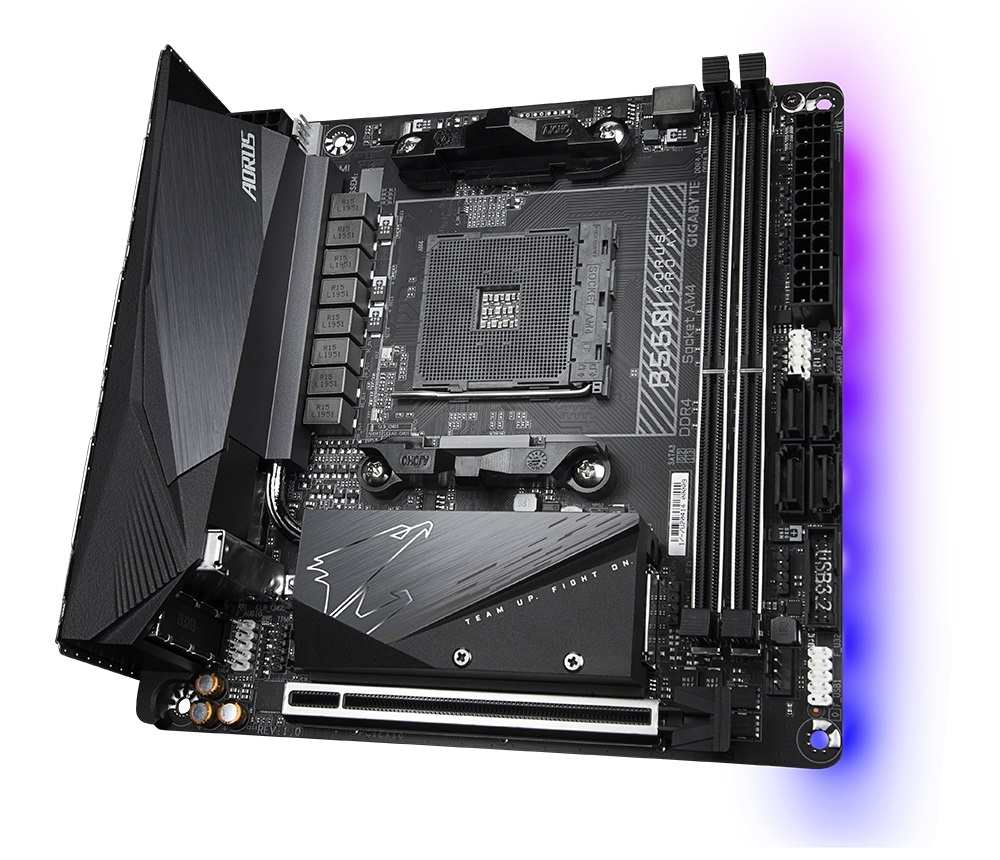

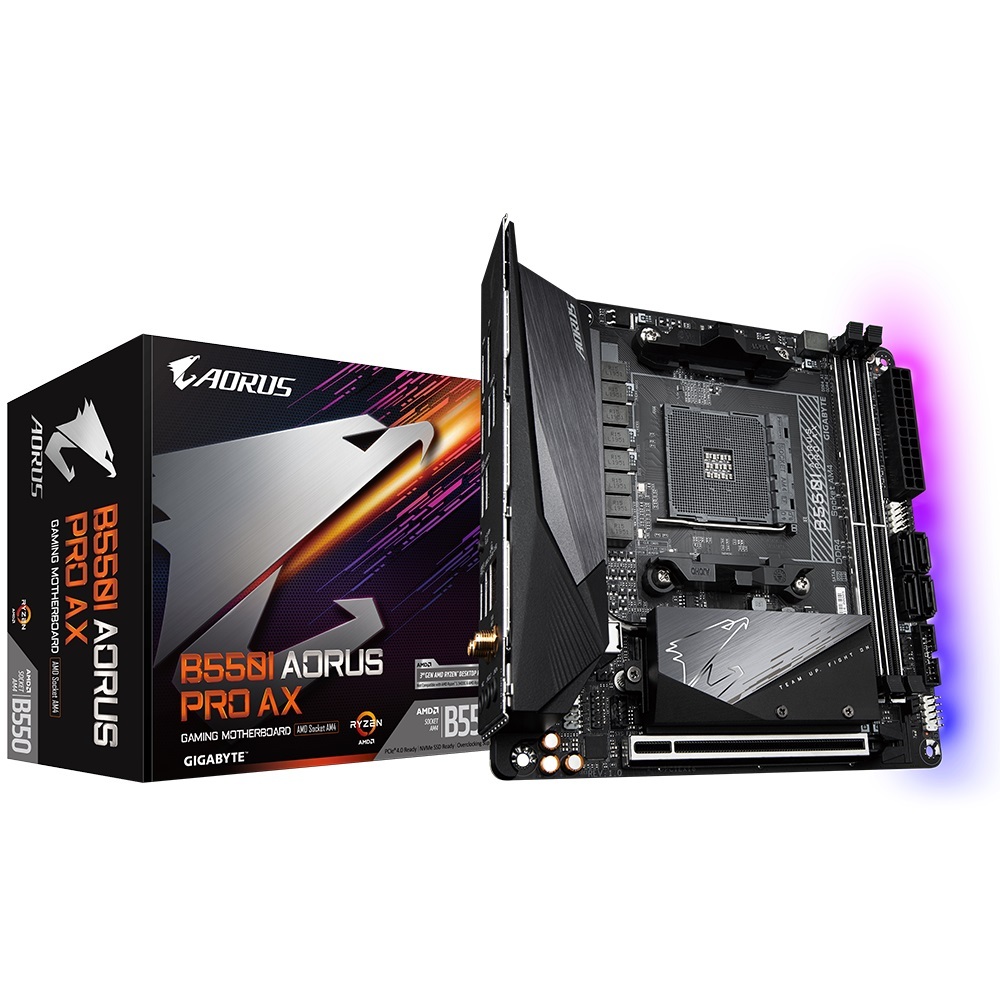

Gigabyte B550 I AORUS PRO AX AMD B550 Mini-ITX AORUS Motherboard with Direct 8 Phases Digital VRM, Advanced Thermal Design with Extended VRM Heatsink, Thermal Baseplate, Dual PCIe 4.0/3.0 M.2 with Thermal Guard, Intel WiFi 6 802.11ax, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus

Supports 3rd Gen AMD Ryzen„ Processors

Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs

Direct 8 Phases Digital VRM Solution with 90A Smart Power Stage (SPS)

Advanced Thermal Design with Extended & Multi-Layered Heatsink and Thermal Baseplate

Ultra Durable„ PCIe 4.0 Ready x16 Slot

Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard

Onboard Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna

AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors for Rear 120dB SNR

Blazing Fast 2.5GbE LAN with Bandwidth Management

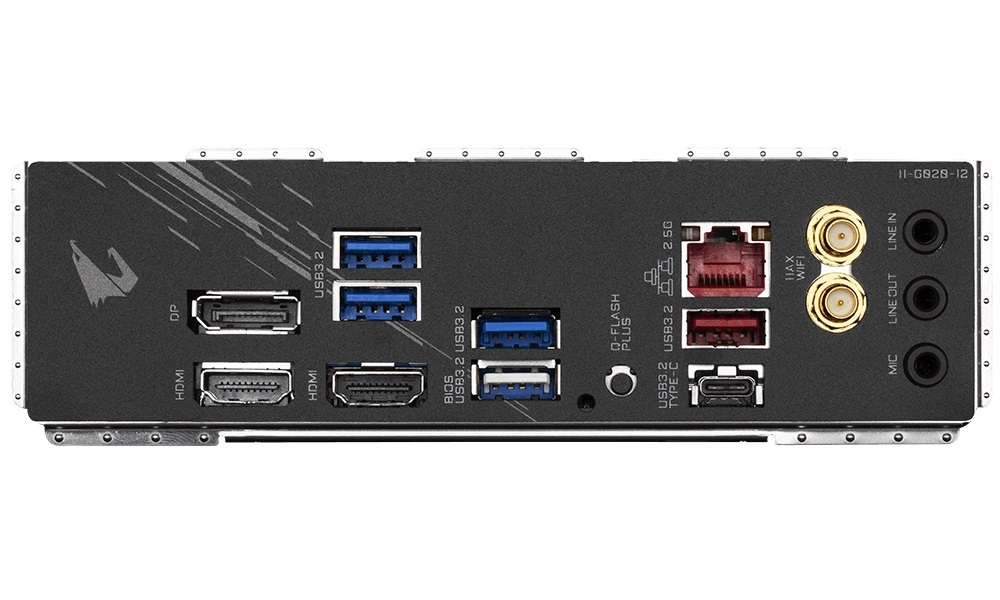

USB 3.2 Gen2 Type-C„ & DisplayPort + Dual HDMI Support

RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips

Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Pre-installed IO Shield for Easy and Quick Installation

CPU

AMD Socket AM4, support for: 3rd Generation AMD Ryzen„ processors/ New Generation AMD Ryzen„ with Radeon„ Graphics processors

Memory

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

3rd Gen AMD Ryzen„ Processors:

New Generation AMD Ryzen„ with Radeon„ Graphics processors:

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated in the New Generation AMD Ryzen„ with Radeon„ Graphics processors:

1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz

2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz

Support for up to 3 displays at the same time
