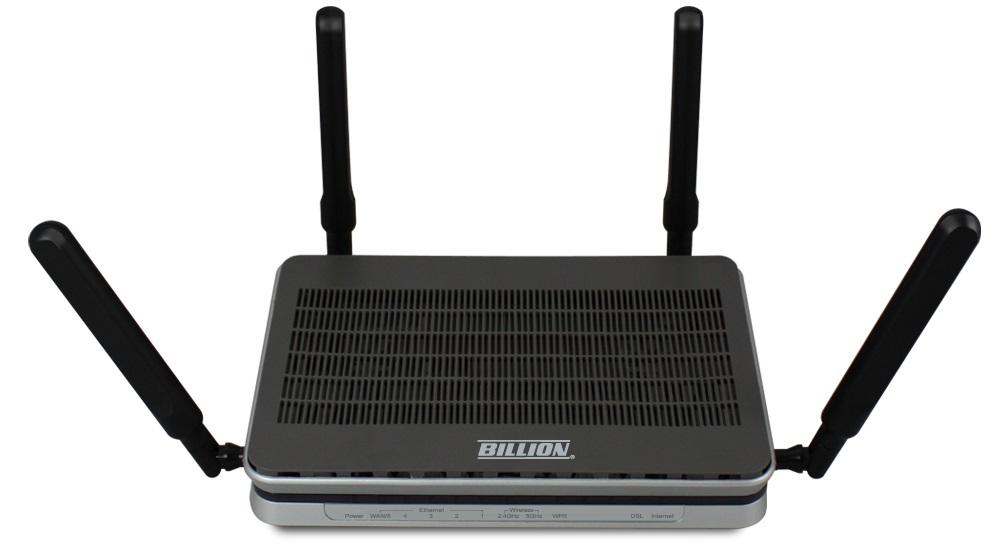

Billion BIPAC8900AX-2400 AC 2400Mpbs 3G/4G LTE VDSL2 ADSL2+ VPN Firewall Router

Triple-WAN ports for 3G/4G LTE, VDSL2/ADSL2+ fallback, Gigabit Ethernet WAN (EWAN) forbroadband connectivity

Key Features

Dedicated High Powered Amplifiers for both 2.4Ghz & 5Ghz for Ultimate Wifi coverage

Latest MU-MiMO with Wave2 11ac technology, supporting 4x4' Antenna with high powered WiFi.

Triple-WAN ports for LTE, VDSL2/ADSL2+ fallback, Gigabit Ethernet WAN (EWAN) for broadband connectivity

Simultaneous dual-band Wireless up to 2400Mbps (2.4GHz and 5GHz)

Gigabit WAN and LAN

IPv6 ready (IPv4/IPv6 dual stack)

Fibre (FTTC/FTTP/FTTH) ready with high WAN throughput

NBN (National Broadband Network) ready* Note -1

USB port for print server, NAS, DLNA media server, and LTE USB modem

SNR adjustments to achieve highest sync speeds

Monitoring of individual LAN ports

QoS for traffic prioritization and bandwidth management

Compliant with IEEE 802.11a/b/g/n and ac standards

WPS (Wi-Fi Protected Setup) for easy setup

Wireless security with WPA-PSK/WPA2-PSK

Supports WDS repeater function

Multiple wireless SSIDs with wireless guest access and client isolation

16 IPSec VPN tunnels

SOHO firewall security

Auto failover

Supports IPTV application* 2

Ease of use with quick installation wizard (EZSO)

Broadcom chipset for better stability

Ideal for SOHO and office users

WAN Interface

ADSL only -

V/ADSL —�

EWAN —�(Giga)

LTE —�(via USB)

Hardware Interface

SIM slot -

Fast Ethernet -

Giga Ethernet 4

USB 2.0 1

FXS -

FXO -

802.11n (2.4 GHz) 600Mbps (3x3, high power)

dual band 802.11n -

802.11ac (5 GHz) 1750Mbps (4x4)

Features

VPN —�

IPv4 / IPv6 —�

VLAN_MUX —�

Failover / Fallback —�

Load balance -

Hardware Specifications

Physical Specifications Dimensions: 9.04' x 6.10' x 1.46' (229.5 mm x 155 mm x 37 mm)

Power Requirements Input: 15V DC, 2.0A

Operating Environment Operating temperature: 0 ~ 40„ƒ

Humidity 20﹪~ 95﹪non-condensing
