POSTAGE

Description

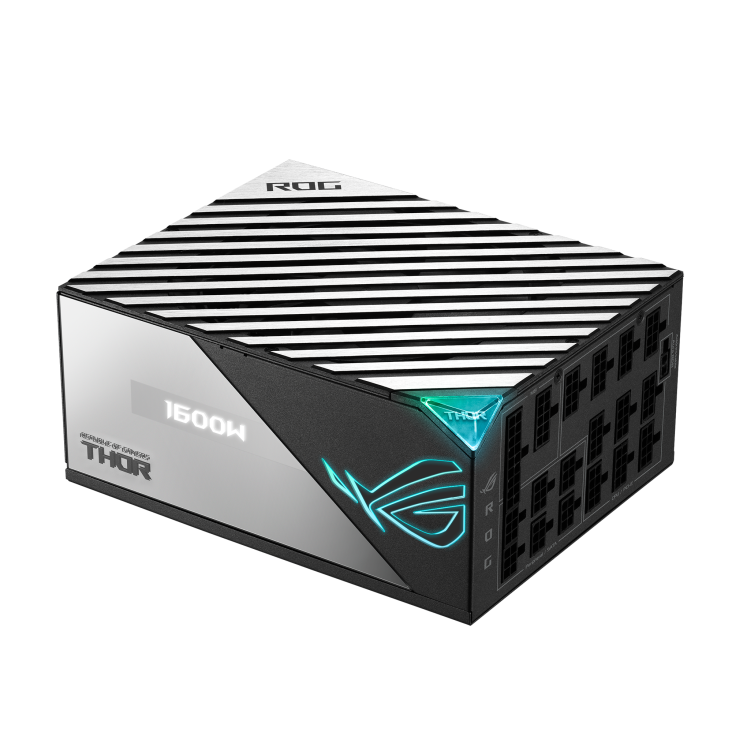

ASUS ROG-THOR-1600T-GAMING The ultimate expression of Thor wields a redesigned core that brings higher power efficiency, improved cooling, and lower noise to monstrous rigs that slay everything in their path.


Gallium nitride MOSFETs are the source of Thors power. Boasting lower switching losses and improved efficiency compared to conventional silicon transistors, GaN FETs allow the 1600W Thor to swing massive amounts of current without being needlessly wasteful.


Intel Specification ATX12V

Dimensions 190 x 150 x 86 mm

Efficiency 80Plus Titanium

Protection Features OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials ROHS

AC Input Range 100-240Vac

Thermal Features ROG Thermal Solution

DC Output Voltage +3.3V +5V +12V -12V +5Vsb

Maximum Load 20A 20A 133.3A 0.3A 3A

Combined Load 100W 100W 1600W 3.6W 15W

Total Output 1600W

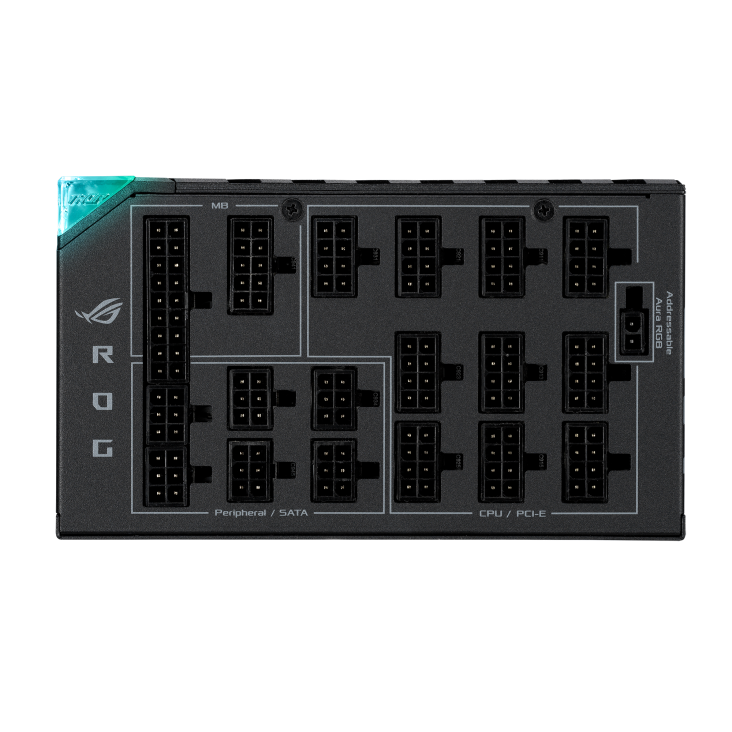

Connectors

MB 24/20-pin x 1

CPU 4+4-pin x 2

PCI-E 16-pin x 1

PCI-E 6+2-pin x 10

SATA x 12

PERIPHERAL x 6


Weight 2.69kg (single PSU)

AURA SYNC ARGB

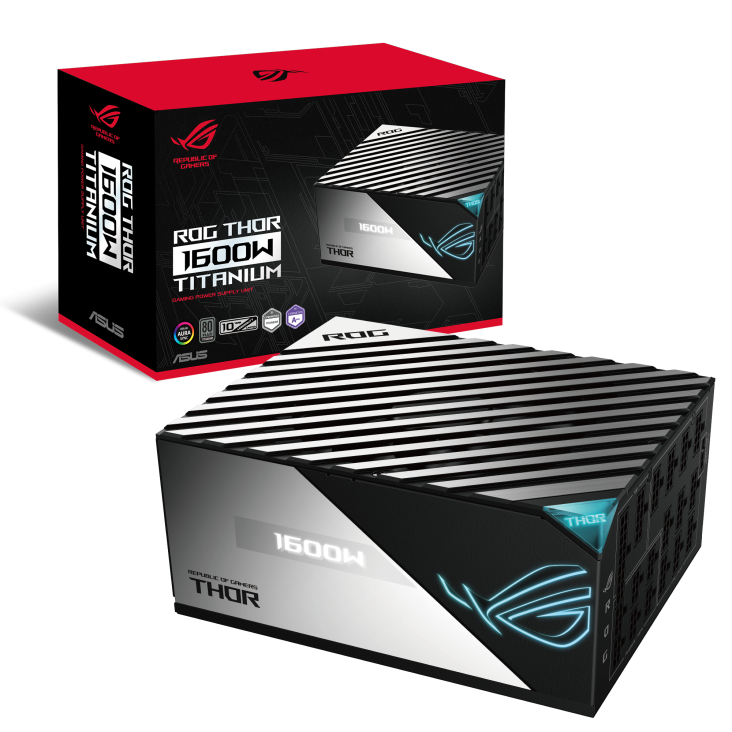

Package Contents

Power Cord x 1

Motherboard Power Cable x 1

CPU Cable x 2

16-pin PCI-E Cable x 1

PCI-E Cable 1-to-1 x 6

PCI-E Cable 1-to-2 x 2

SATA Cable 1-to-4 x 3

Peripheral 1-to-2 x3

Addressable RGB Cable x 1

ROG sticker x 1

ROG cable tie x 6

Chassis Screws Package x 1

Cable Tie x 12

User Manual x 1

Specifications
SKU PSAS-ROG-THOR1600T
Barcode # 4711081198512
Brand ASUS
Shipping weight 6.9600kg
Shipping width 0.346m
Shipping height 0.260m
Shipping length 0.502m
Assembled length 4.020m
Assembled height 1.600m
Assembled width 2.460m

ASUS ROG-THOR-1600T-GAMING 1600Q 80 Plus Titanium Japanese Capacitors 135MM PWM FAN ROG Heatsinks GAN MOSFETS ATX12V ARGB 10YW
