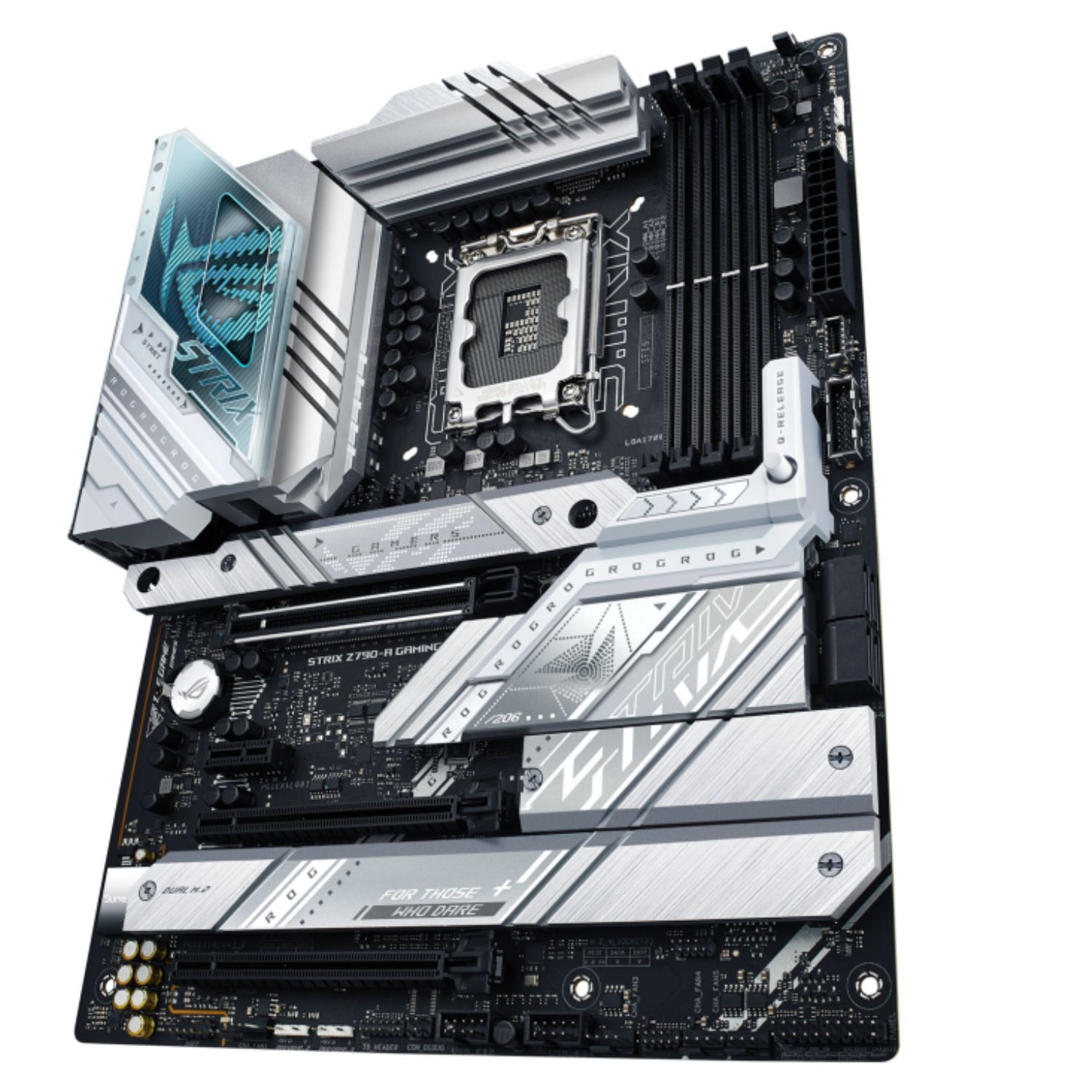

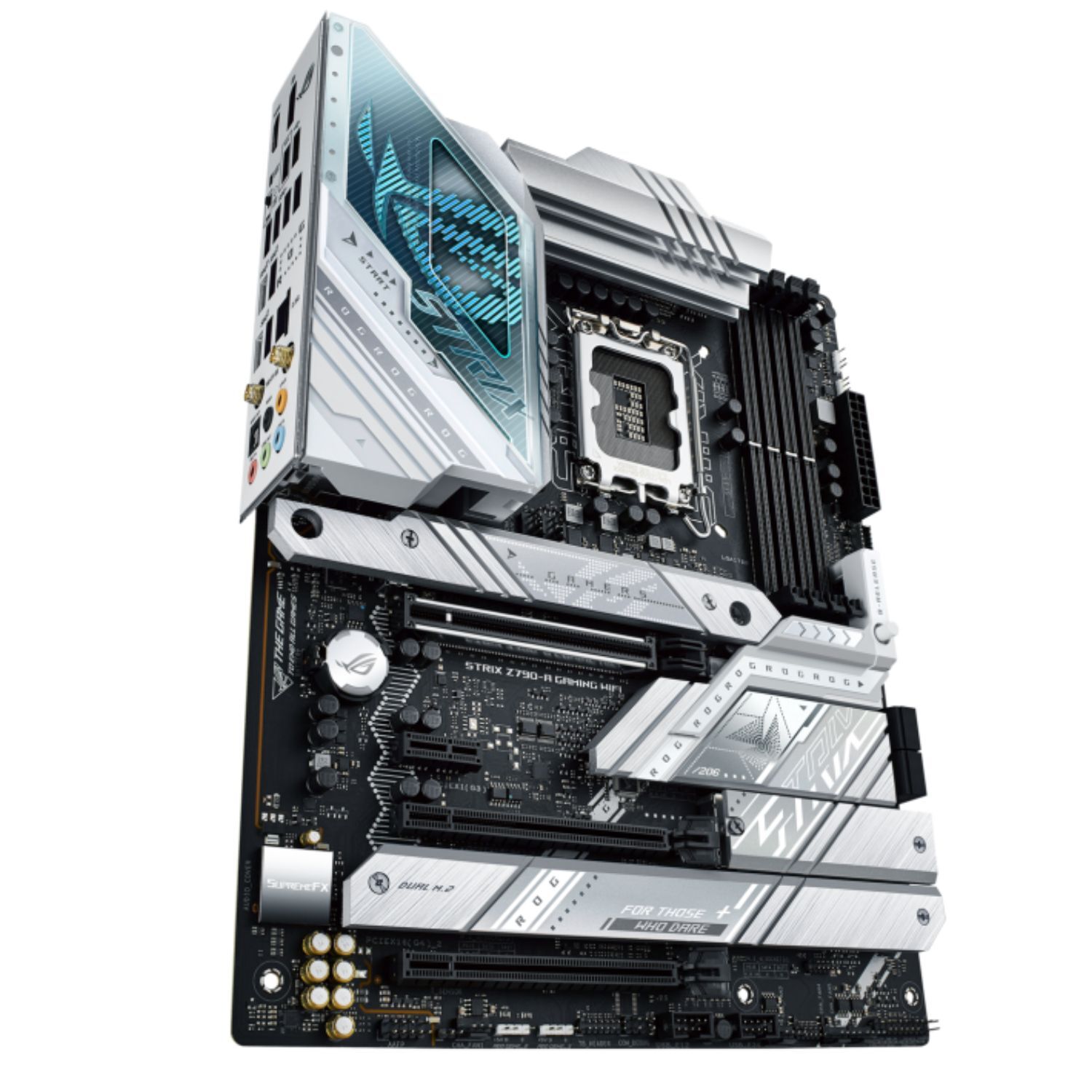

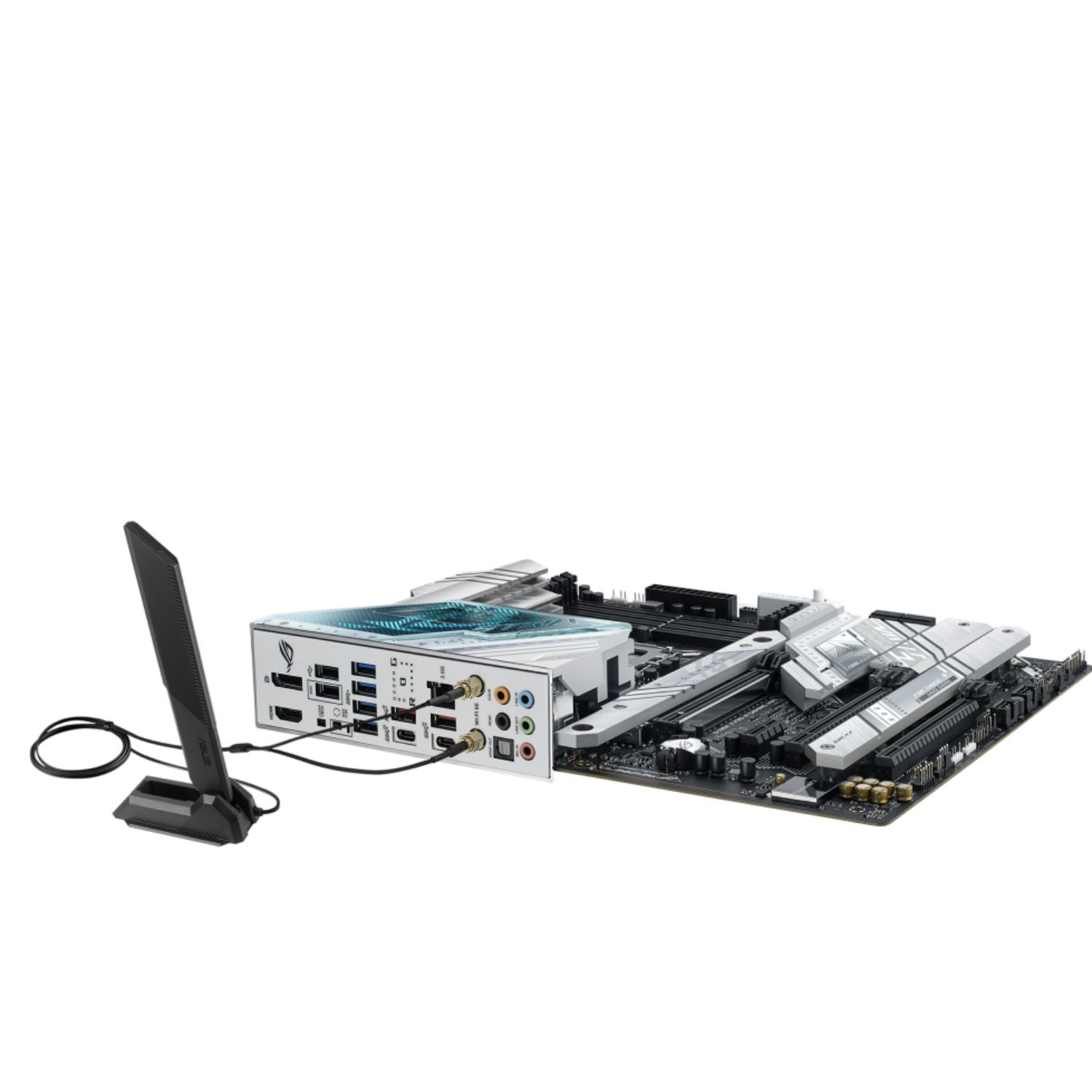

ROG STRIX Z790-A GAMING WIFI

Well-versed in style, performance, cooling, and connectivity, the DDR5 variant of the ROG Strix Z790-A exudes the same balance as its D4 brethren, but after taking a master class in memory. A robust VRM topped with stout silver heatsinks comfortably articulates power for the latest Intel 13th Gen Core processors, while PCIe 5.0, WiFi 6E, and high-speed USB flesh out the board's fluency across a variety of disciplines. And a vast collection of tuning options and utilities derived from its ROG heritage are the icing on top.

ROG STRIX Z790-A GAMING WIFI

CPU

Intel Socket LGA1700 for 13th Gen Intel Core„ & 12th Gen Intel Core„, Pentium Gold and Celeron Processors

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel Z790 Chipset

Memory

4 x DIMM, Max. 128GB, DDR5

7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

OptiMem II

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**

1 x HDMI port***

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports max. 8K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

**** VGA resolution support depends on processors' or graphic cards' resolution.
