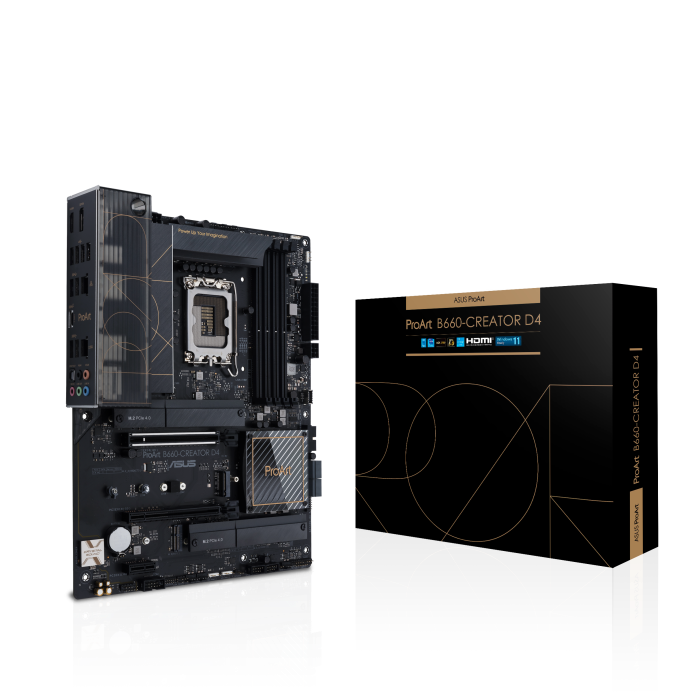

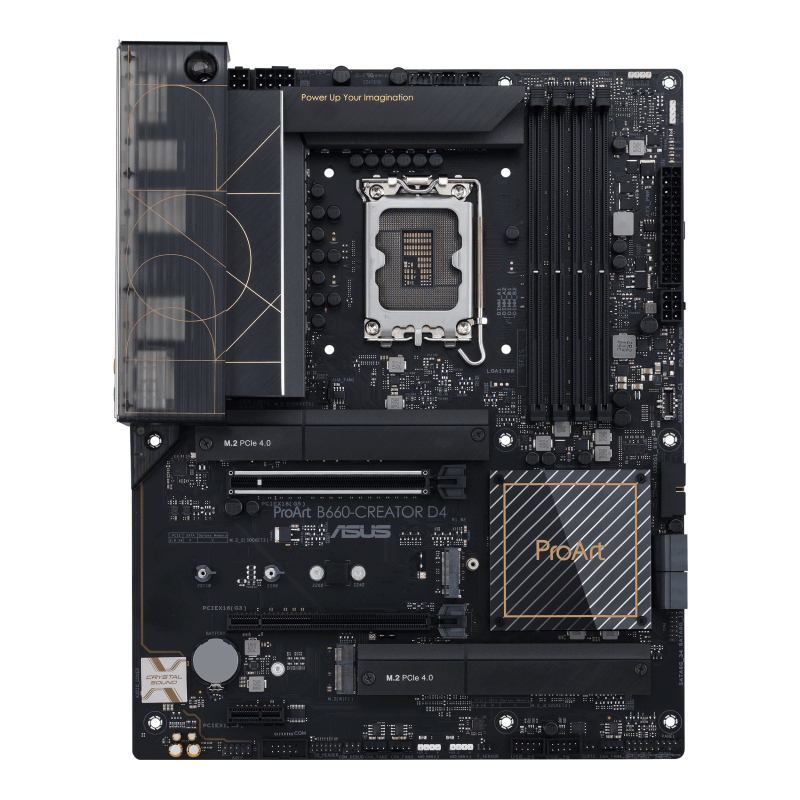

ASUS PROART B660-CREATOR D4 Intel B660 LGA 1700 ATX motherboard built for creators, with PCIe 5.0, DDR4, 2.5 Gb and 1 Gb Ethernet, three PCIe 4.0 M.2 slots, plus USB-C DisplayPort„ and a USB 3.2 Gen 2x2 front-panel connector with Quick Charge 4+

Socket LGA 1700 for 12th Gen Intel Core„, Pentium Gold and Celeron processors

Comprehensive connectivity: 2.5 Gb & 1 Gb onboard Ethernet, three M.2 slots, ThunderboltTM header support, USB-C DisplayPortTM and a USB 3.2 Gen 2x2 front panel connector with Quick Charge 4+

Next-gen performance: 12+1 power stages rated for 50 amps, PCIe 5.0 ready

Optimized thermal design: A massive VRM and chipset heatsink, aluminum M.2 heatsinks, six 4-pin PWM fan headers and an AIO pump header

ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control

Advanced security management: USB port restriction, software blacklisting and Windows Registry protection via ASUS Control Center Express

CPU

Intel Socket LGA1700 for 12th Gen Intel Core„, Pentium Gold and Celeron Processors

Supports Intel 10 nm CPU

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

Chipset Intel B660

Memory

4 x DIMM, Max. 128GB, DDR4

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

OptiMem II

Graphics

1 x HDMI port**

1 x Type-C port supports DisplayPort output***

1 x DP IN that will have output through Type-C port

Expansion Slots

Intel 12th Gen Processors

1 x PCIe 5.0/4.0/3.0 x16 slot

Intel B660 Chipset*

1 x PCIe 3.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x1 slot*

Storage

Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports*

Ethernet

1 x Realtek 2.5Gb Ethernet

1 x Intel 1Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

M.2 slot only (Key E, PCIe)*

*Wi-Fi module is sold separately.

Form Factor

ATX Form Factor ( 30.5 cm x 24.4 cm )
