ASUS nVidia GeForce TUF-RTX5070TI-O16G-GAMING RTX5070TI 16GB GDDR7 2588MHz Boost Clock 28 Gbps 256-bit HDMI2,DP3,16G,D7 1484 TOPs

Model

TUF-RTX5070TI-O16G-GAMING

Graphic Engine

NVIDIA GeForce RTX„ 5070 Ti

AI Performance

1484 TOPs

Bus Standard

PCI Express 5.0

OpenGL

OpenGL4.6

Video Memory

16GB GDDR7

Engine Clock

OC mode: 2610MHz

Default mode: 2588MHz (Boost Clock)

CUDA Core

8960

Memory Speed

28 Gbps

Memory Interface

256-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 2 (Native HDMI 2.1b)

Yes x 3 (Native DisplayPort 2.1b)

HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink Crossfire Support

No

Accessories

1 x Speedsetup Manual

1 x TUF Graphics Card Holder

1 x TUF Velcro Hook Loop

1 x TUF Magnet

1 x TUF Gaming Certificate

1 x Thank You Card

1 x Adpater Cable (1 to 3)

Software

ASUS GPU Tweak III MuseTree GeForce Game Ready Driver Studio Driver: please download all software from the support site.

Dimensions

329 x 140 x 62.5 mm

12.95 x 5.51 x 2.46 inch

Recommended PSU

850W

Power Connectors

1 x 16-pin

Slot

3.125 Slot

AURA SYNC

ARGB

This advanced cooling design features the ASUS-exclusive MaxContact manufacturing technique, a phase-change GPU thermal pad and efficient Axial-tech fans, helping to ensure premium thermal performance, optimized airflow and quiet operation, all within a robust and vented metal exoskeleton.

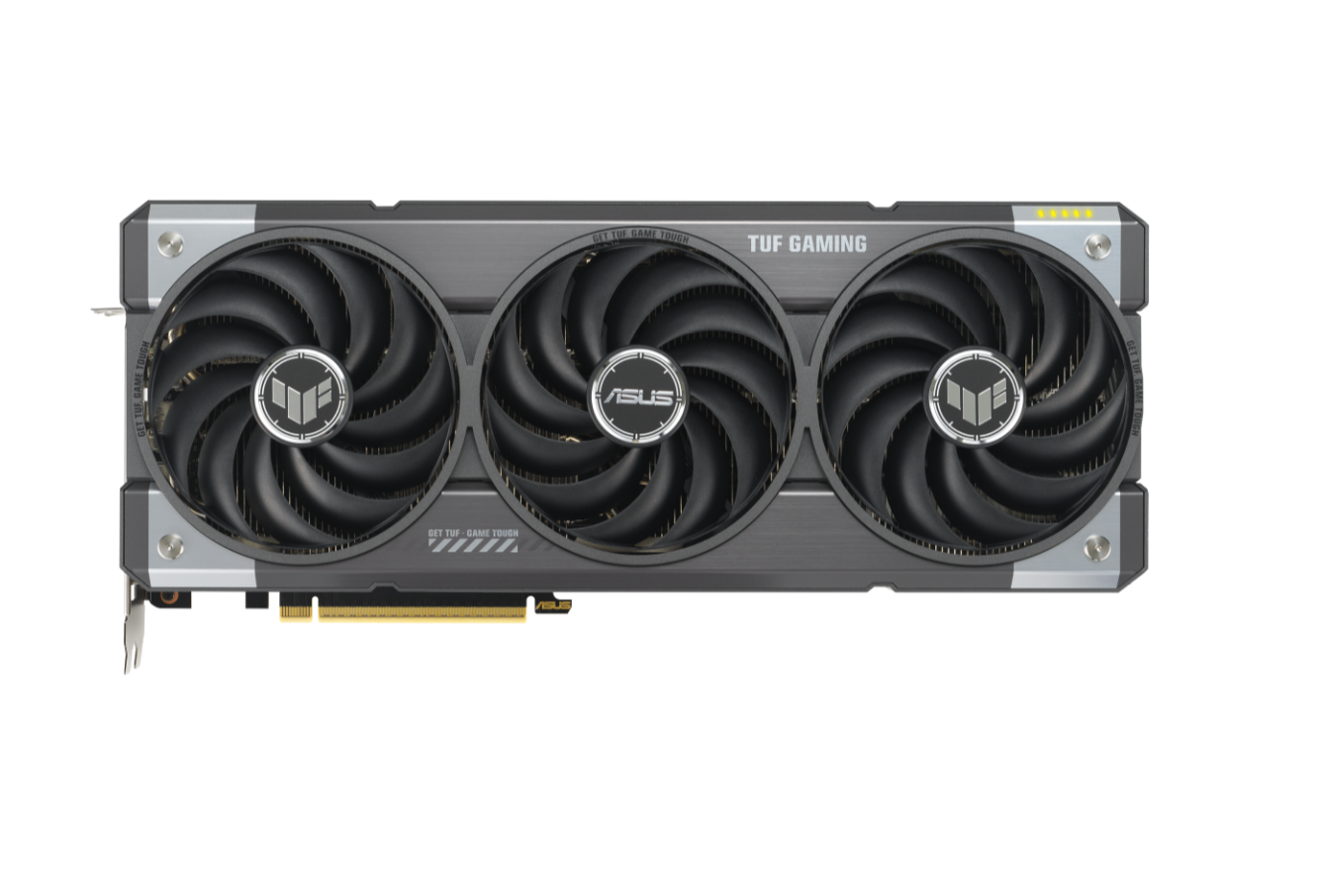

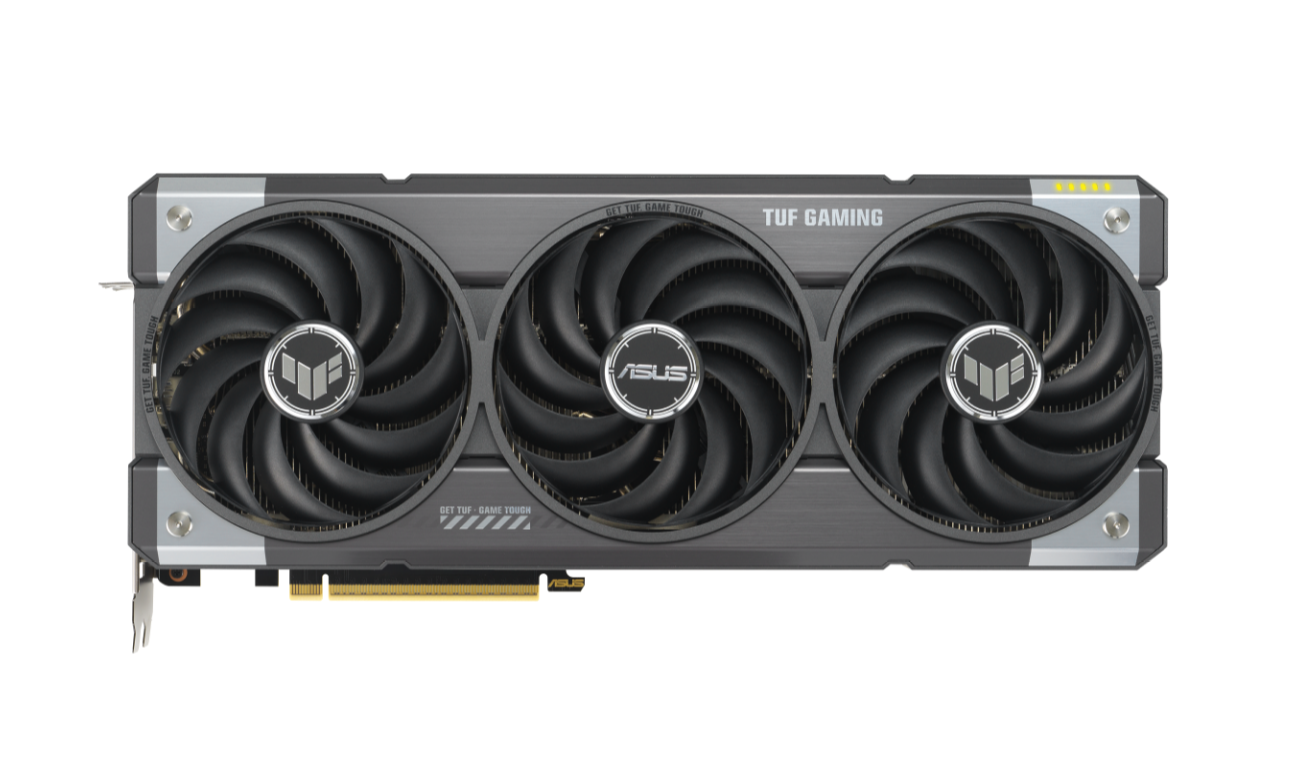

Angled front view of TUF Gaming GeForce RTX 5070 Ti showing triple fans and ARGB lighting

A visual comparison of ASUS MaxContact and a traditional heat speader

MaxContact Design

MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5pct, compared to traditional designs. This improves temperatures by up to 2 degreeC, in concert with an extensive heatsink array and powerful Axial-tech fans.

Exploded view of graphics card with Axial-tech fan highlighted

Axial-tech Upgrades

Axial-tech fans spin on dual-ball bearings and propel up to 31pct more air than standard fans.

Graphics card fans with arrows indicating different directions of spin

New Directions

The two outer fans spin counterclockwise to reduce turbulence and enhance air dispersion. All three fans stop when GPU temps are below 50 degreeC, for quieter operation during light tasks. They restart above 55 degreeC, following a speed curve that balances performance and acoustics.

Graphic depicting how airflow passes through the vented exoskeleton of the TUF Gaming RTX 5070 Ti

Vented Exoskeleton

A high-quality diecast shroud and aluminum backplate help prevent PCB flex and feature large vents to further increase heat dissipation
