Description

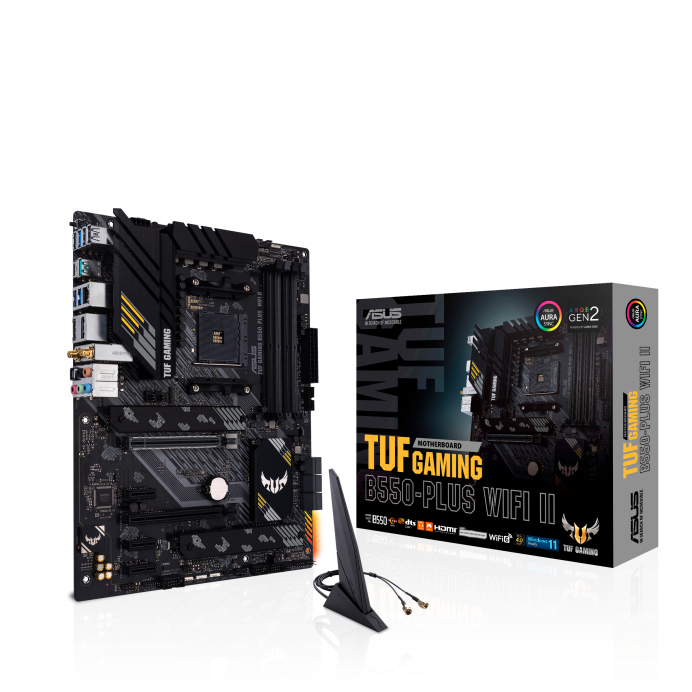

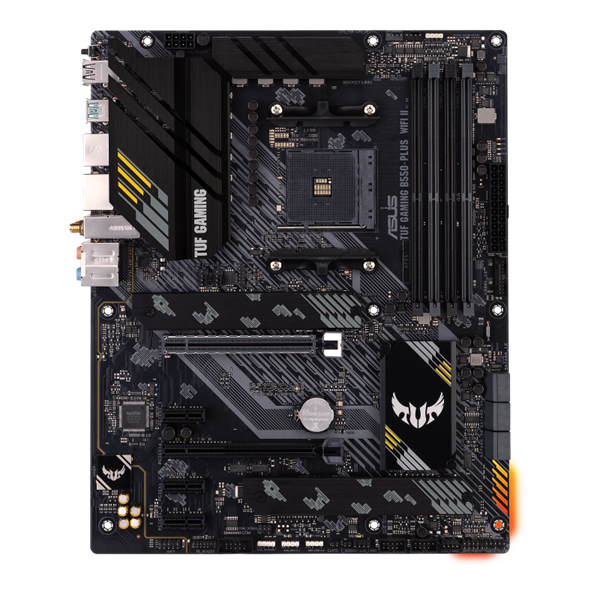

ASUS TUF GAMING B550-PLUS (WI-FI) II AMD B550 (Ryzen AM4) ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, Intel Wi-Fi 6, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt„ 3 header, and Aura Sync RGB lighting support

AMD AM4 socket: Ready for 3rd Gen AMD Ryzen„ processors

Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability

Comprehensive cooling: VRM heatsink, PCH fanless heatsink, Dual M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility

Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt„ 3 header support

Made for online gaming: Intel Wi-Fi 6, 2.5 Gb Ethernet, TUF LANGuard, and Turbo LAN technology

Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in

AI noise-canceling microphone: provides crystal-clear in-game voice communication


Chipset AMD B550

Memory 3rd Gen AMD Ryzen„ Processors

3rd Gen AMD Ryzen„ with Radeon„ Graphics Processors

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

Graphic 1 x DisplayPort 1.2

1 x HDMI 2.1(4K@60HZ)

Multi-GPU Support Supports AMD 2-Way CrossFireX Technology

Expansion Slots 3rd Gen AMD Ryzen„ Processors

1 x PCIe 4.0 x16 (x16 mode)

3rd Gen AMD Ryzen„ with Radeon„ Graphics Processors

1 x PCIe 3.0 x16 (x16 mode)

AMD B550 Chipset

1 x PCIe 3.0 x16 (x4 mode)

3 x PCIe 3.0 x1

Storage Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports

6 x SATA 6Gb/s port(s),

Support Raid 0, 1, 5, 10

LAN Realtek RTL8125B 2.5Gb Ethernet

TUF LANGuard

ATX Form Factor 30.5 cm x 24.4 cm

Specifications
SKU MBA-B550-PLUSTUFWFII
Barcode # 4711081338413
Brand ASUS
Shipping weight 1.6000kg
Assembled length 0.274m
Assembled height 0.070m
Assembled width 0.342m

ASUS AMD B550 TUF GAMING B550-PLUS WIFI II (Ryzen AM4) ATX Motherboard, PCIe 4.0, Dual M.2, 10 DrMOS Power Stages, 2.5Gb LAN, HDMI, DP, Wi-Fi 6

$265.64
RRP $279.00 save 5%

or 4 payments of $66.41 with Learn more

Sold Out

Product Information

SKU:

MBA-B550-PLUSTUFWFII

Brand:

ASUS

Barcode #:

4711081338413

Shipping Weigth:

1.6000kg
