Description

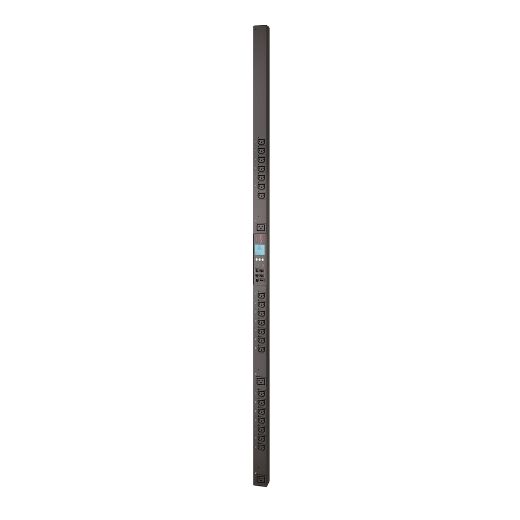

Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 20A 208V, 16A 230V, (21) C13 (3) C19


APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur.

Colour Black

PDU type Switched metered outlet

Provided equipment- CAN port terminator, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable

Input Voltage 200 V, 208 V, 230 V

Output Voltage 100 V, 200 V, 208 V, 230 V

Mounting preference No preference

Input Plug Type IEC 60320 C20

Rack units 0U

Mounting position Vertical

[In] rated current 16 A

Permissible voltage 100¦240 V

Input current limits 20 A

Load capacity- 3300 VA

Network frequency 50 60 Hz

Total number of outlets- 21 IEC 60320 C13, 3 IEC 60320 C19

Ambient air temperature for operation -5¦60 degreeC

Relative humidity 5¦95 pct

Operating altitude 0...10000 ft

Ambient air temperature for storage -25¦65 degreeC

Storage Relative Humidity 5¦95 pct

Storage altitude 0.00¦15240.00 m


Mounting mode- Not rack mountable

Compatible PDU- AP8000BLU, AP8000RED, AP8702R-WW, AP8702S-WW, AP8702S-WWX340

Compatible Sensors- AP9335T, AP9335TH

Compatible Mounting- AR7711

Specifications
SKU UPA-AP8659
Brand APC
Shipping weight 8.3420kg
Shipping width 0.262m
Shipping height 2.138m
Shipping length 0.217m

APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 20A 208V, 16A 230V, (21) C13 (3) C19

$2,620.00
In Stock
